Rear Muffler
WARNING: This page is about a different variant/trim than selected.

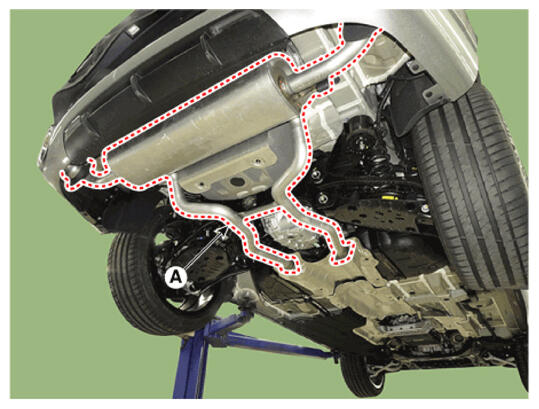

- Remove the rear muffler (A).
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
