LH Air Cleaner Element Replacement
WARNING: This page is about a different variant/trim than selected.

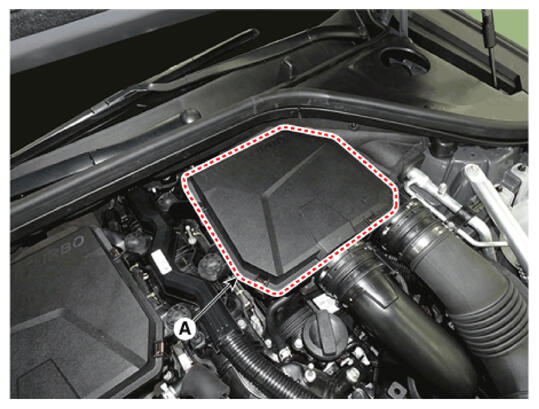

- Open the LH air cleaner element cover (A).NOTE:
- The air cleaner clamp can be dismantled using a tool. However, attention to scratches.
- When assembling, press down on the side of the clamp.

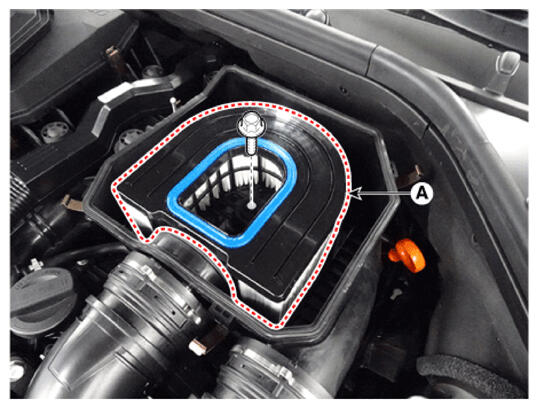

- Replace the air cleaner element (A) with a new one, after remove the mounting bolt.
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
NOTE:- If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.
- When cleaning the inside, be careful not to allow foreign substances to enter the air hose.
- Close the air cleaner element cover.
