RH Air Cleaner Assembly
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal from the trunk room.
- Remove the engine room cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

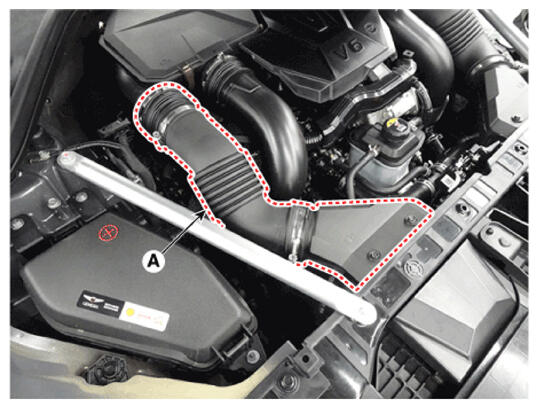

- Remove the air duct (A).
- Remove the RH air cleaner assembly.

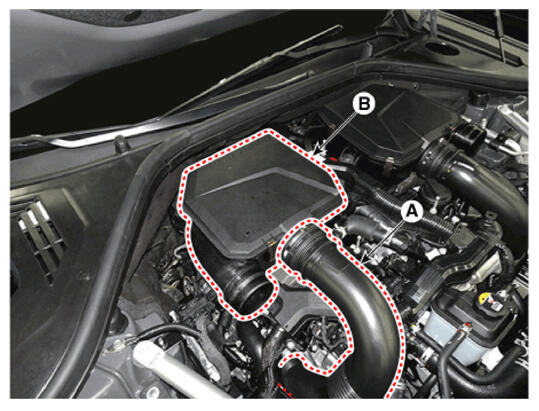

- Disconnect the RH air intake hose (A).
Tightening torque:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
- Remove the RH air cleaner assembly (B).NOTE:
- When reassembling the air intake hose, insert it so that it sounds like a connector tightening.
- Be careful not to damage the surrounding components when assembling the air intake hose.
- Disconnect the RH air intake hose (A).
- Install in the reverse order of removal.
