Water cooled intercooler coolant

WARNING: This page is about a different variant/trim than selected.
  1. Make sure the engine and radiator are cool to the touch.

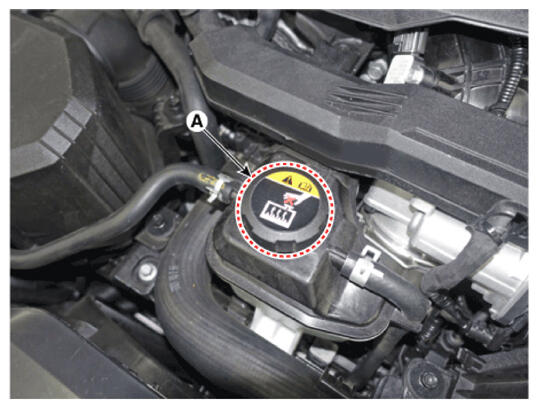

  2. Remove the reservoir tank cap (A).
    G16847963Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the engine room front under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

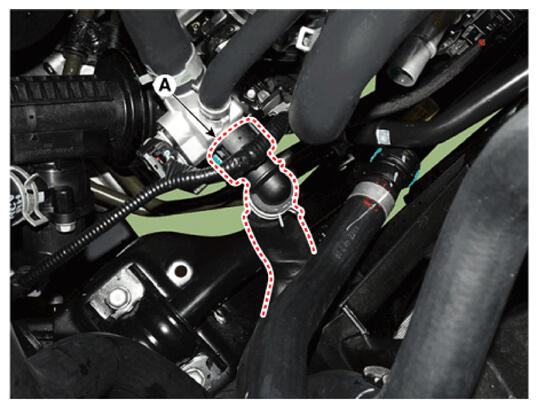

  4. Disconnect the water cooled intercooler outlet hose (A) and then drain the coolant from the water cooled intercooler.
    G16847964Courtesy of HYUNDAI MOTOR AMERICA
