Engine Radiator
WARNING: This page is about a different variant/trim than selected.
- Remove the cooling fan assembly.
(Refer to Cooling System - "COOLING FAN ")

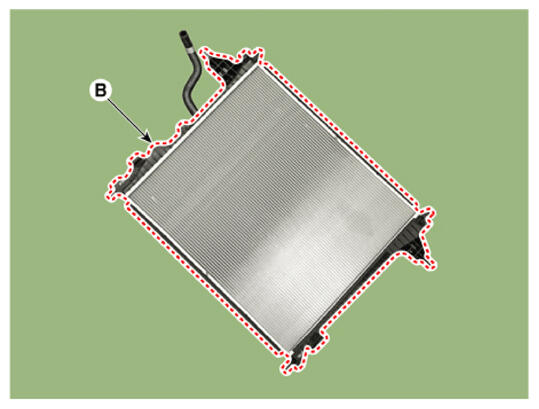

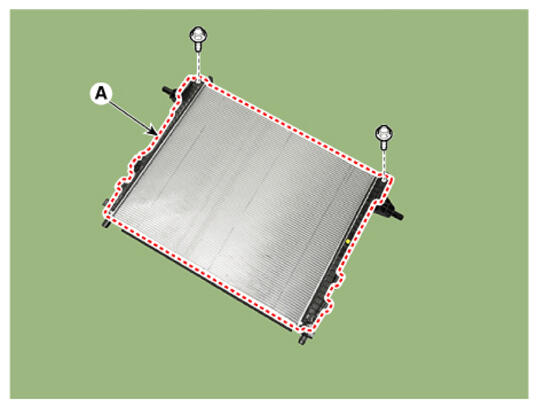

- Remove the engine radiator (B) by loosening the mounting bolt of the water-cooled intercooler radiator (A).
[Engine Radiator]
[Water cooled intercooler radiator]
- Install in the reverse order of removal.
- Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
- Fill the water cooled intercooler coolant.
(Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")
- Recheck coolant level.

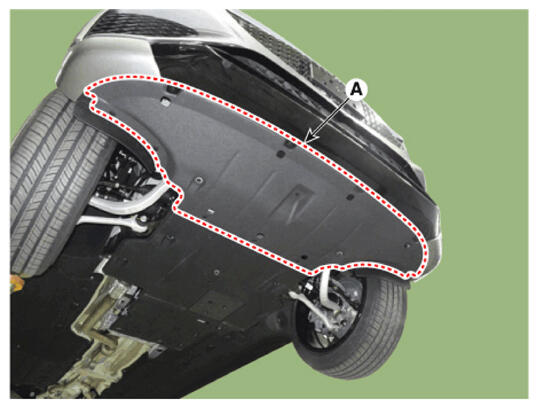

- Install the front engine room under cover (A).
