Heater pipe

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  3. Loosen the drain plug and drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  4. Remove the LH air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

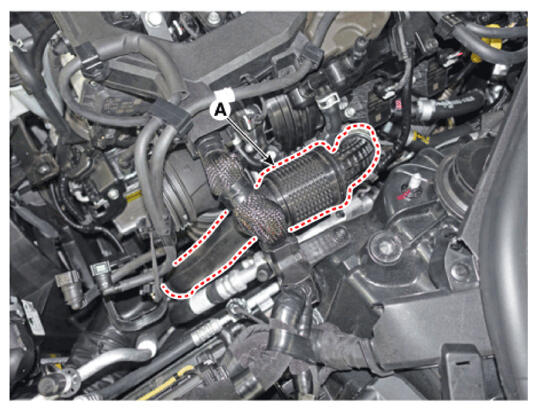

  5. Remove the intercooler inlet pipe (A).
    G16848011Courtesy of HYUNDAI MOTOR AMERICA

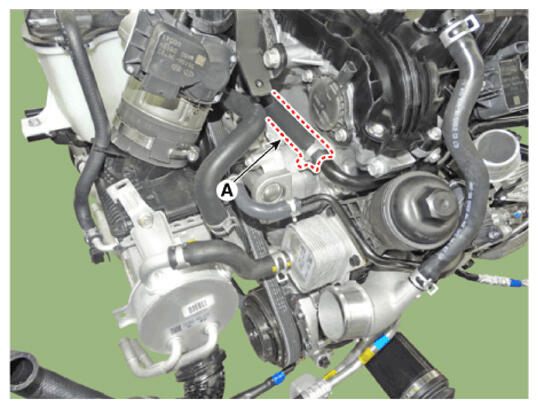

  6. Disconnect the turbo charger water hose (A).
    G16848012Courtesy of HYUNDAI MOTOR AMERICA

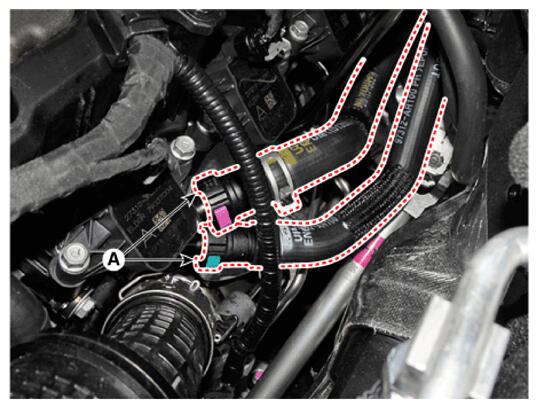

  7. Disconnect the heater hoses (A).
    G16848013Courtesy of HYUNDAI MOTOR AMERICA

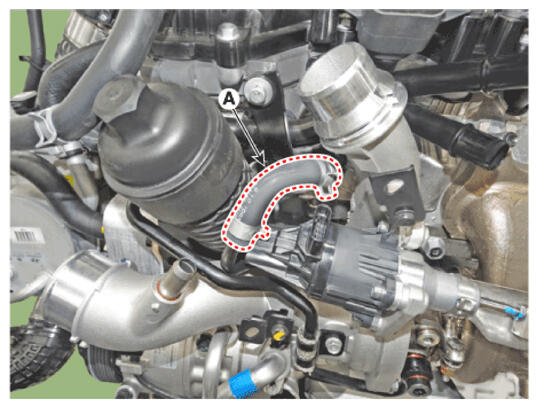

  8. Disconnect the turbo charger water hose (A).
    G16848014Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the oil filter & oil cooler.

    (Refer to Lubrication System - "OIL FILTER & OIL COOLER ")

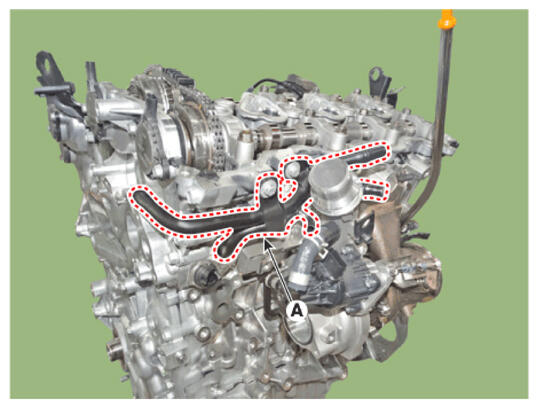

  10. Remove the heater pipe (A).

    Tightening torque:

    9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 Ib.ft)

    G16848015Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
    NOTE:
    • Always use the new heater pipe O-ring.
    • When installing the heater pipe, apply anti-freeze or soapy water to O-ring.
  12. Fill the engine coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE:
    • The engine coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
  13. Recheck coolant level.
