Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal from the trunk room.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
- Disconnect the water cooled intercooler outlet hose and then drain the water cooled intercooler coolant.
(Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")
- Remove the RH air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

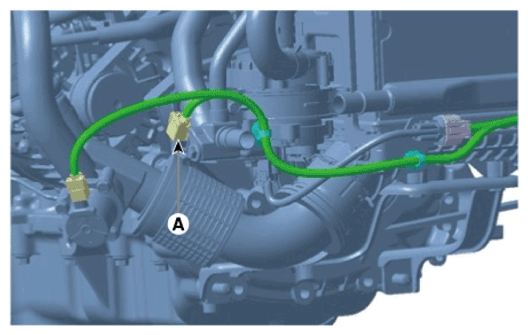

- Disconnect the engine coolant temperature sensor connector (A).

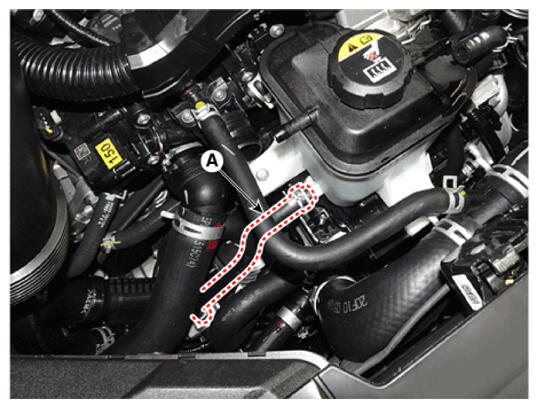

- Disconnect the water cooled intercooler outlet hose (A).

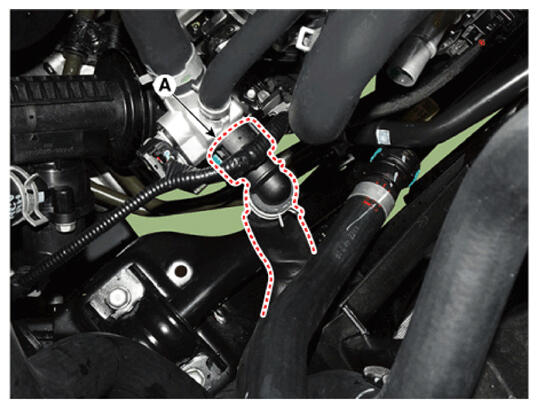

- Disconnect the water cooled intercooler reservoir tank hose (A).

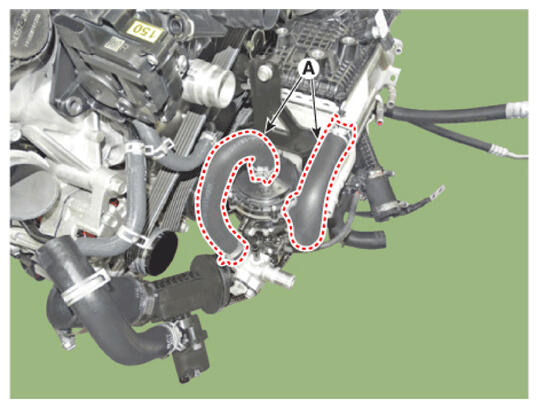

- Disconnect the electric water pump (EWP) hose (A).

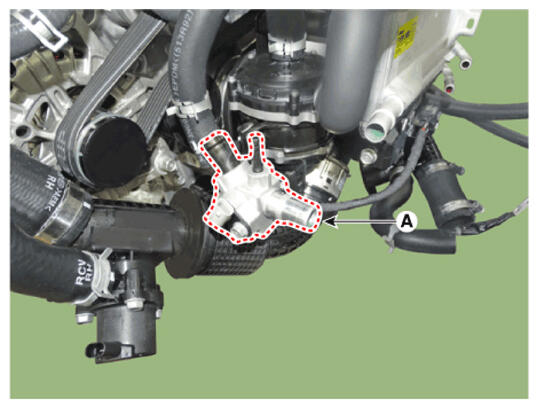

- Remove the T-nipple (A).

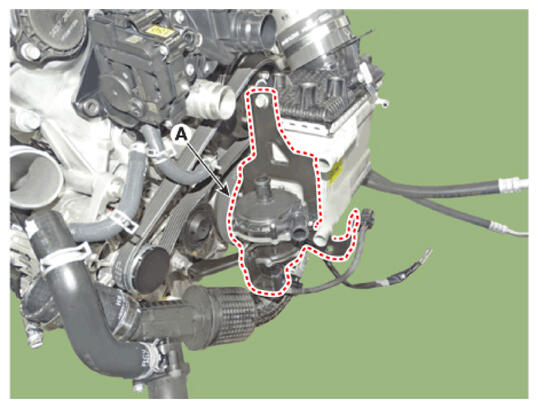

- Remove the electric water pump (EWP) and bracket (A).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
- Install in the reverse order of removal.
- Fill the water cooled intercooler coolant.
(Refer to Cooling System - "WATER COOLED INTERCOOLER COOLANT ")
NOTE:- The water cooled intercooler coolant must be injected according to the electric water pump (EWP) coolant filling method.
- Recheck coolant level.
