Engine coolant
WARNING: This page is about a different variant/trim than selected.
- Make sure the engine and radiator are cool to the touch.

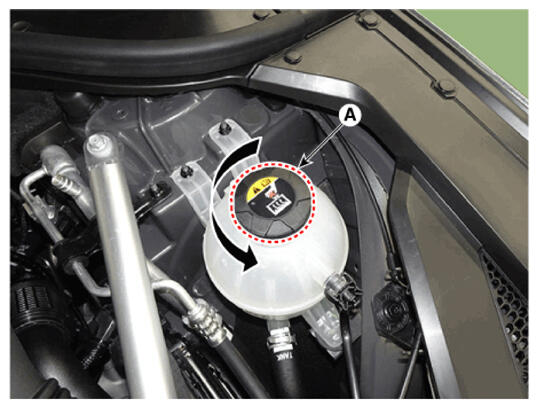

- Remove the reservoir tank cap (A).
- Remove the engine room front under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

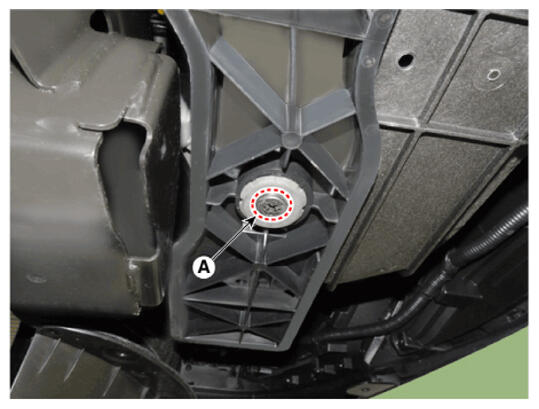

- Drain engine coolant by loosening the drain plug (A).
