Active Air Flap (AAF) Actuator
WARNING: This page is about a different variant/trim than selected.
- Remove the front bumper cover.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

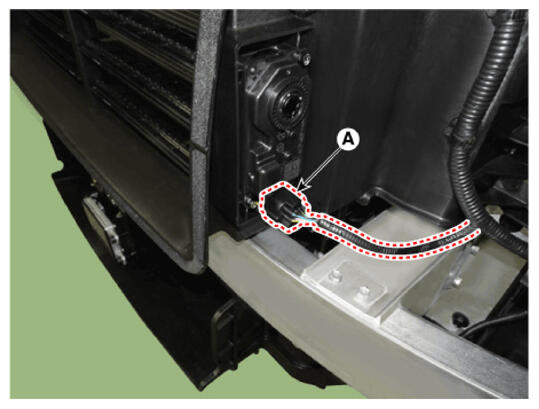

- Disconnect the active air flap (AAF) actuator connector (A).

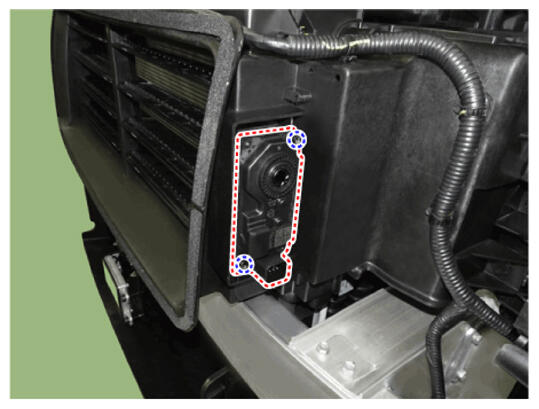

- Remove the active air flap (AAF) actuator (A).
- Install in the reverse order of removal.
