Engine Room Rear Under Cover
WARNING: This page is about a different variant/trim than selected.

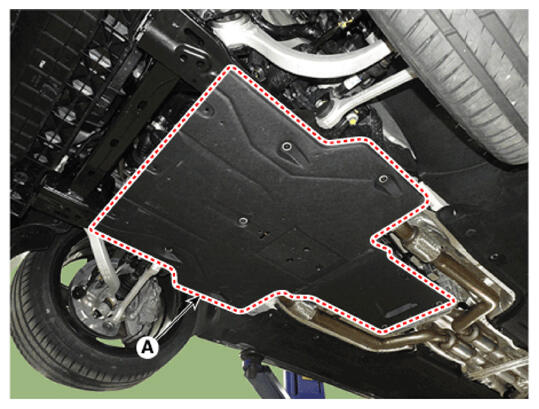

- Remove the engine room rear under cover (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
