LH Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the front cross member.
(Refer to Suspension System - "FRONT CROSS MEMBER ").

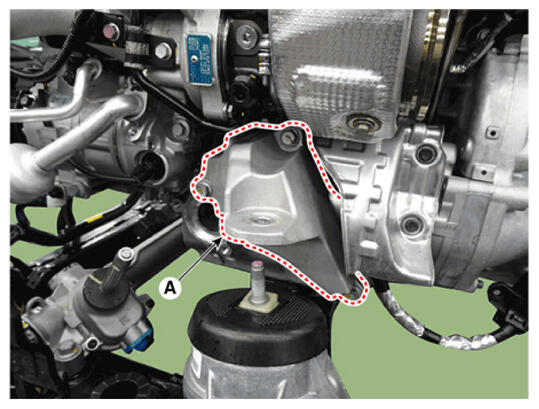

Remove the LH engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

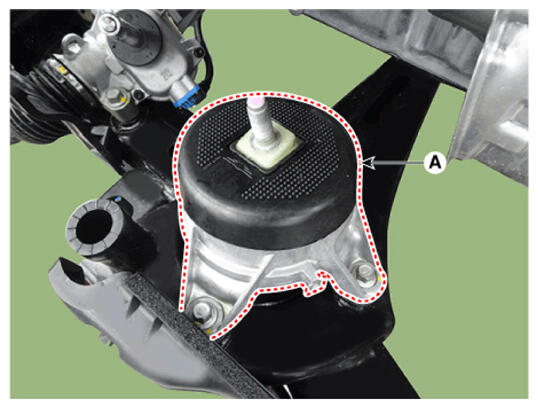

Remove the LH engine mounting support bracket (A).
Tightening torque:

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
