Evaporate Leakage Test

WARNING: This page is about a different variant/trim than selected.

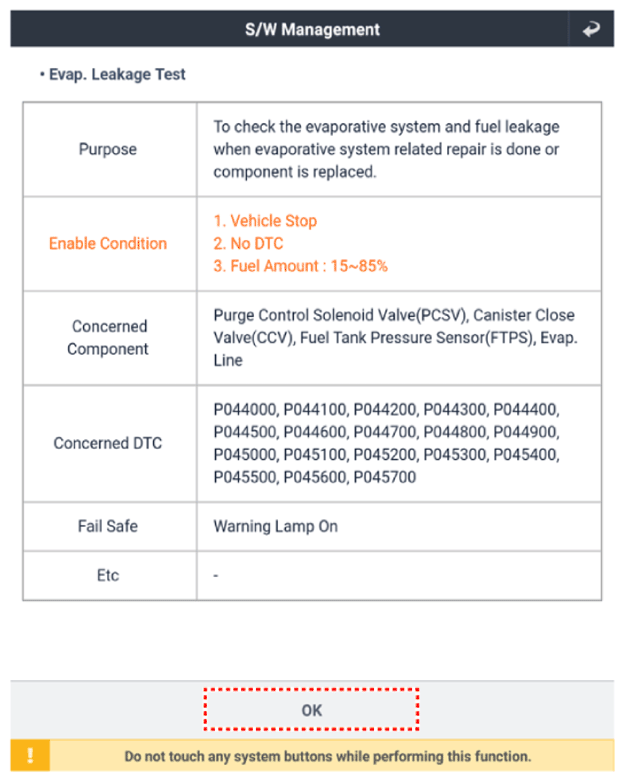

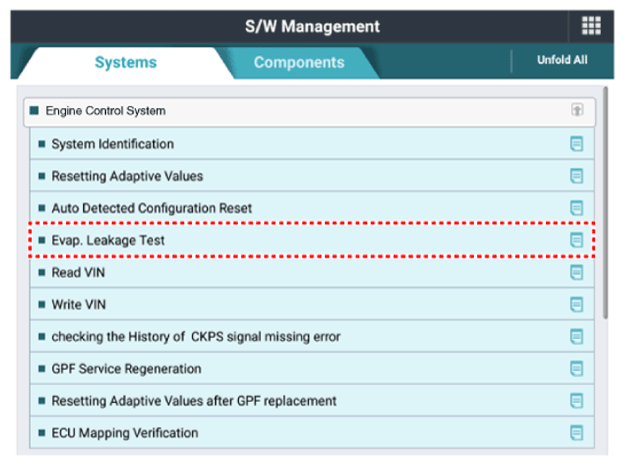

Select "EVAP. Leakage Test".

Courtesy of HYUNDAI MOTOR AMERICA

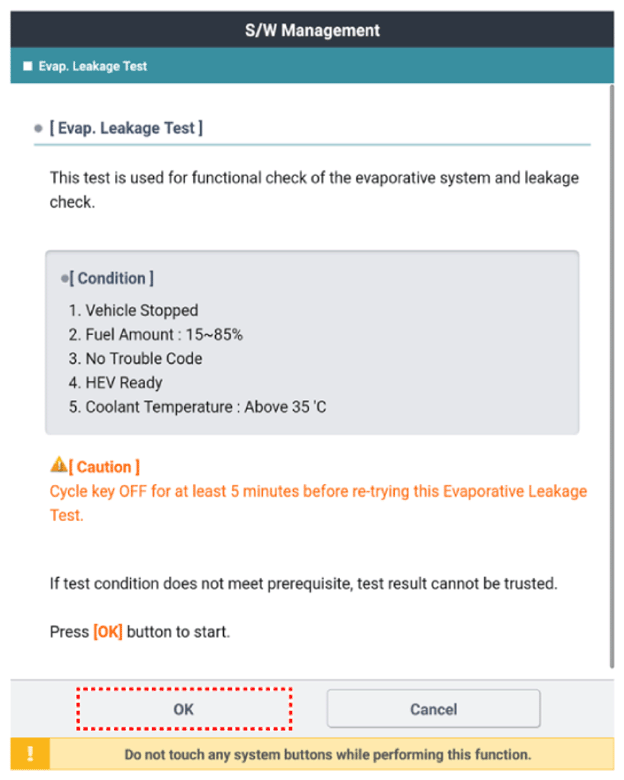

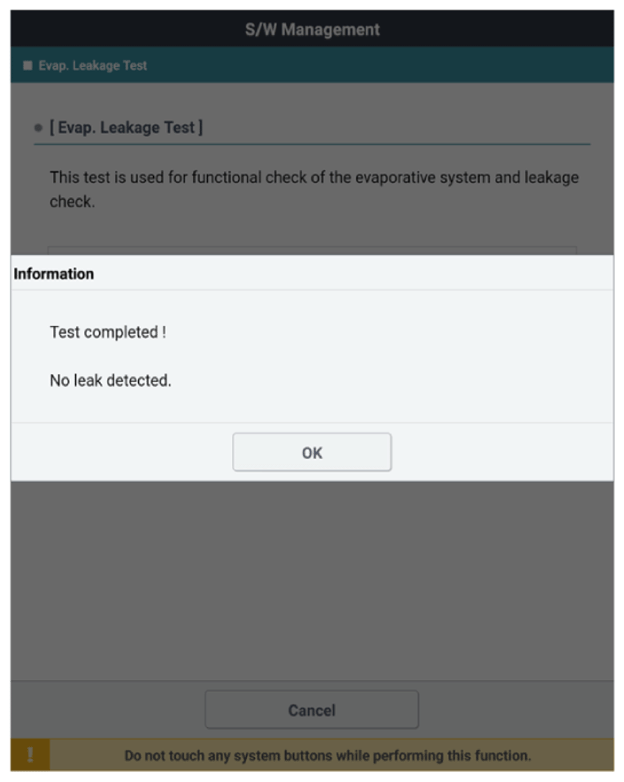

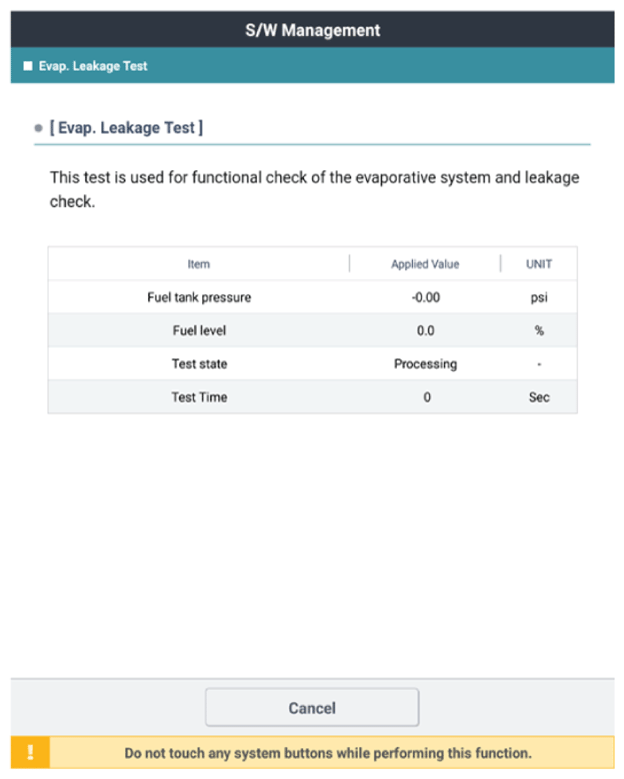

The test shall be conducted in accordance with diagnostic tool instructions.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
