Description And Operation: Description
WARNING: This page is about a different variant/trim than selected.

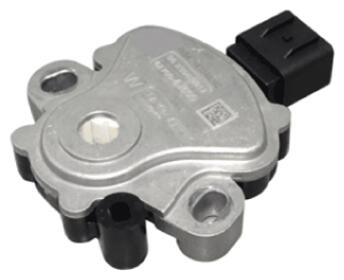

- Component location:
Automatic transmission case
- Function:
Transmits signals to indicate whether parking is active in the TCM.
- Operating Principle:
The system determines whether parking is active in the TCM by whether the S1 (P) pin and S2 (Not P) pin are ON or OFF, based on the working angle.
 Courtesy of HYUNDAI MOTOR AMERICA
|
