Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the parking switch.
(Refer to Automatic Transmission System - "PARKING SWITCH ")

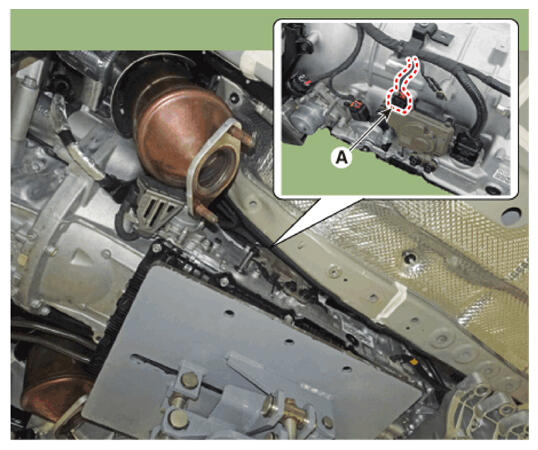

- Disconnect the parking release actuator connector (A).

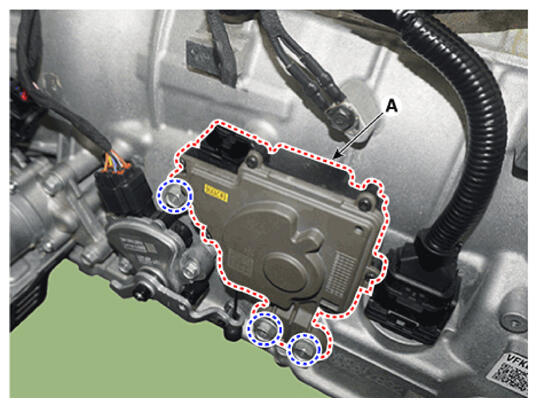

- Loosen the bolts and then removing the parking release actuator (A).
Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
- To install, reverse the removal procedures.
