Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

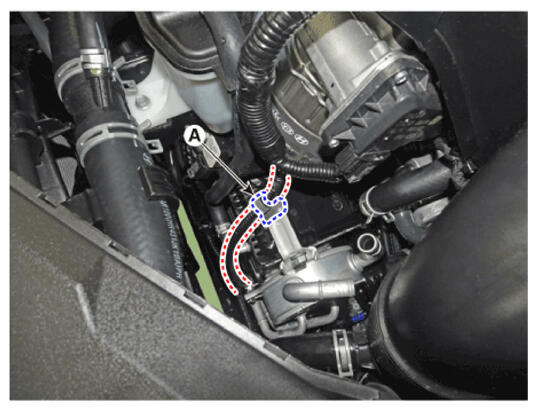

- Disconnect the cooling hose (A).

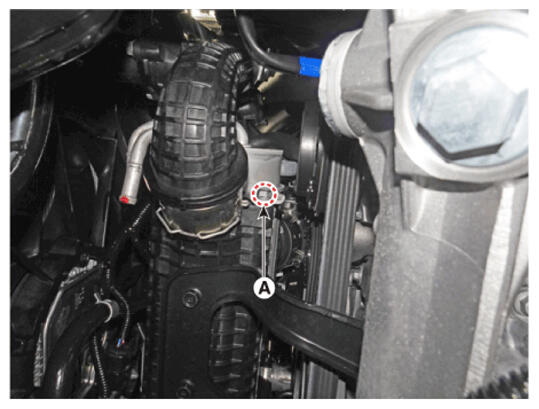

- Loosen the ATF warmer mounting bolt (A).

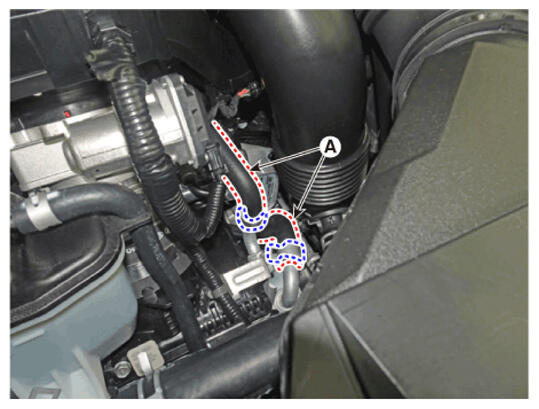

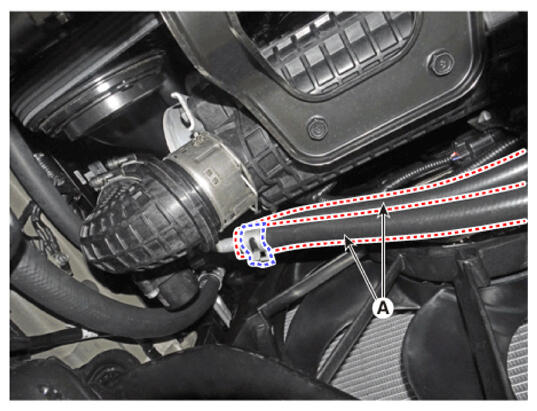

- Disconnect the ATF warmer hose (A).
- Disconnect the wiring clip (A).

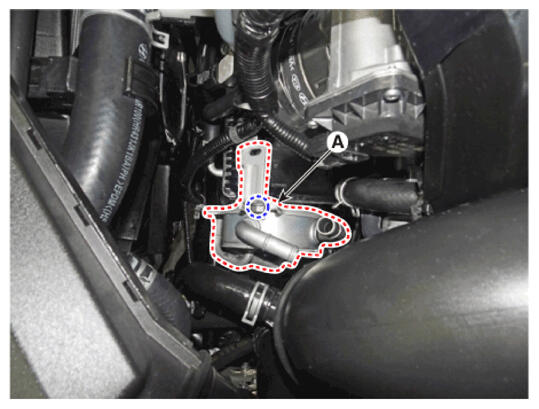

- Remove the ATF warmer (A) after loosening the mounting bolt.
- To install, reverse the removal procedures.
