Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")

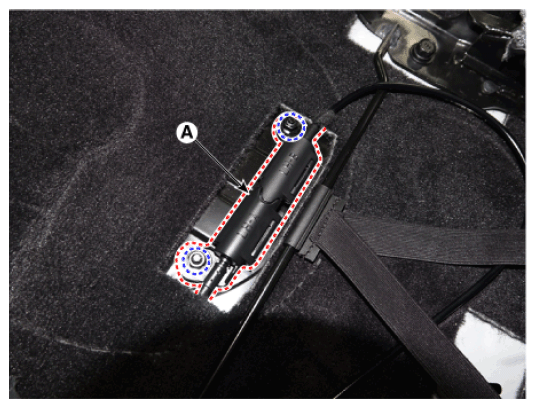

Remove the seat folding cable bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

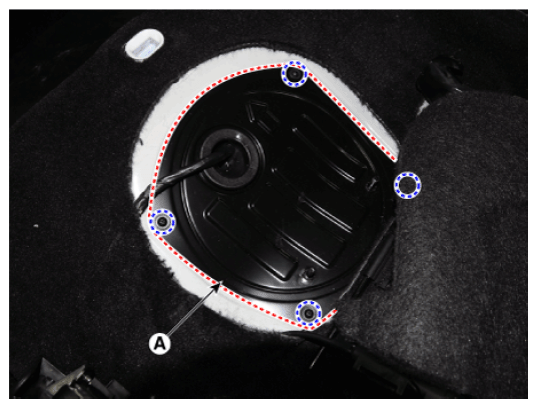

Remove the fuel pump service cover (A) after loosening the mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

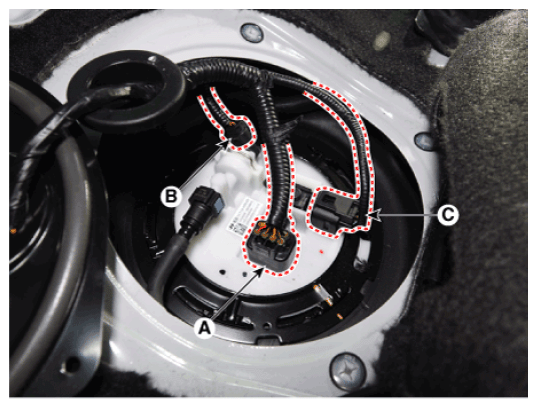

Disconnect the fuel pump connector (A).
Disconnect the fuel pressure sensor connector (B).
Disconnect the fuel tank pressure sensor connector (C).

Courtesy of HYUNDAI MOTOR AMERICA

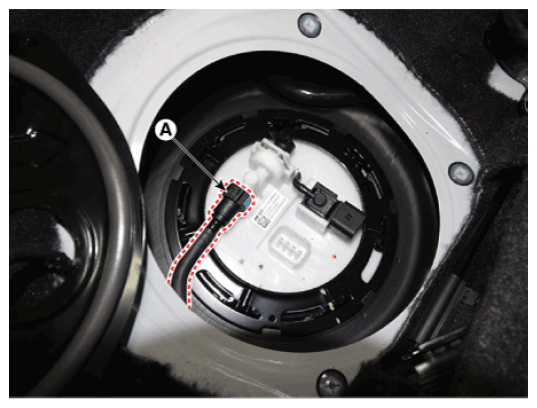

Disconnect the fuel feed tube quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

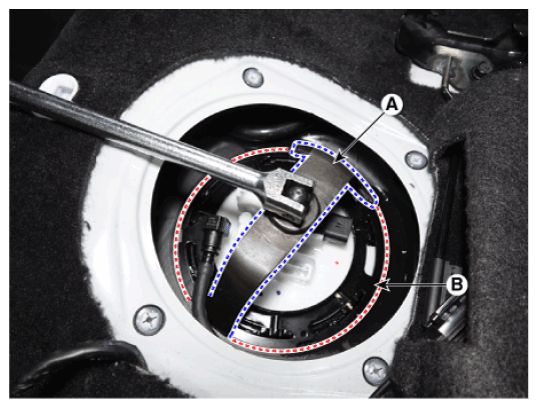

Remove the fuel pump locking ring (B) by using the special service tool (A) [No.: 09310-B8100].
NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
Courtesy of HYUNDAI MOTOR AMERICA

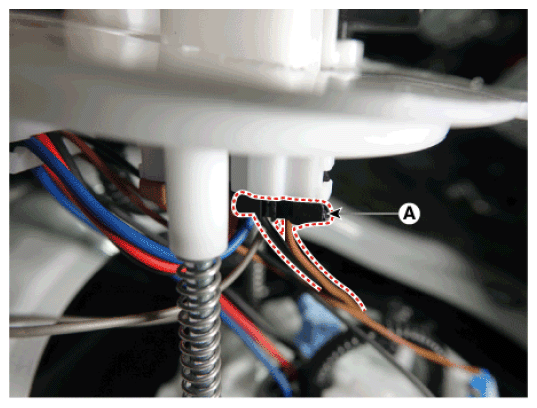

Disconnect the sub fuel sender connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

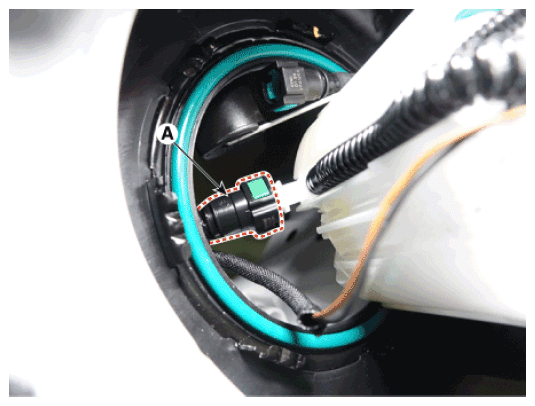

Disconnect the suction quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
