High Pressure Fuel Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

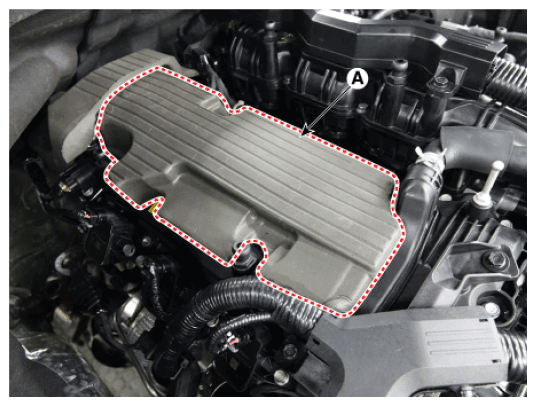

Remove the RH injector foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

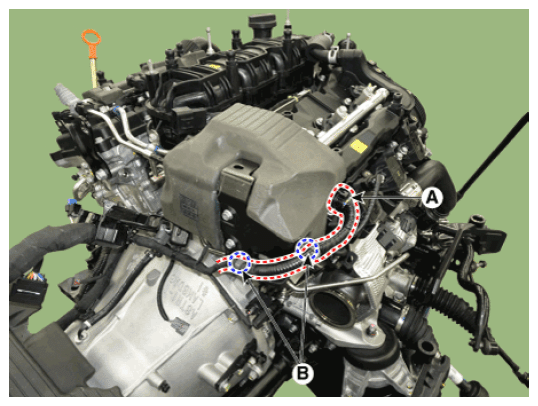

Disconnect the GDI injector connector (A) and then remove the wiring clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

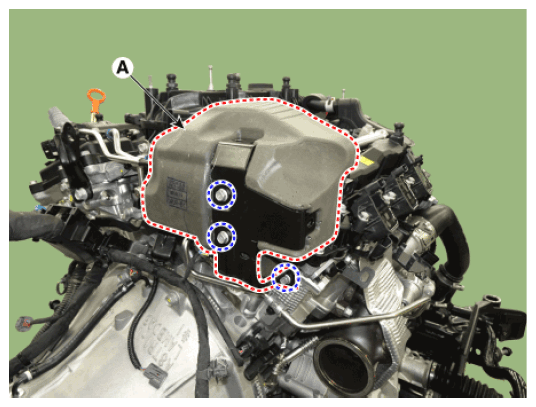

After loosening the mounting bolts, then remove the high pressure fuel pump cover and form (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

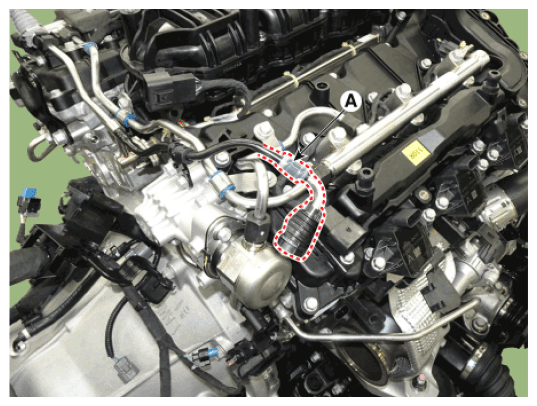

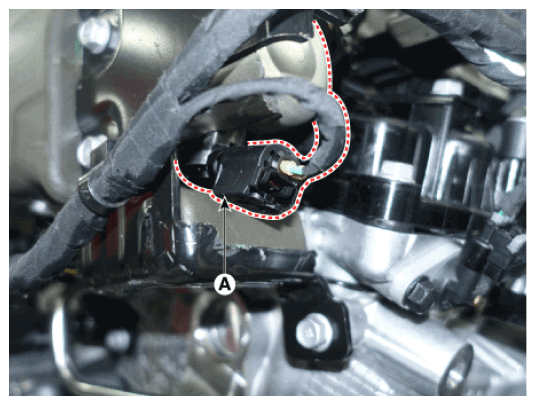

Disconnect the fuel pressure regulating valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

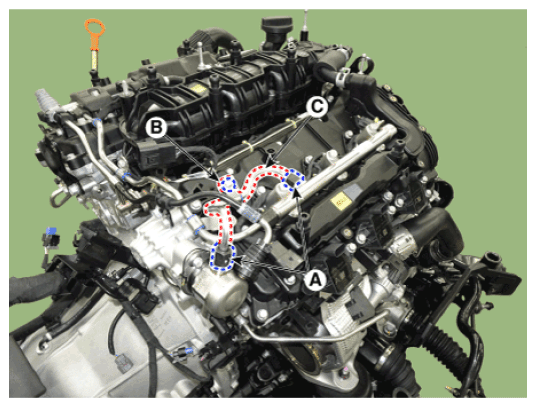

Remove the high pressure fuel pipe (C) after loosening the flange nut (A) and function block bolt (B).
Tightening torque:
1. 29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
2. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the fuel feed line quick-connector (A). [High Pressure Fuel Pump ↔ Engine Room]

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

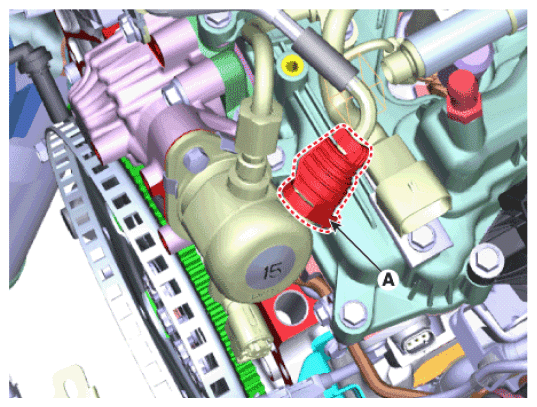

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

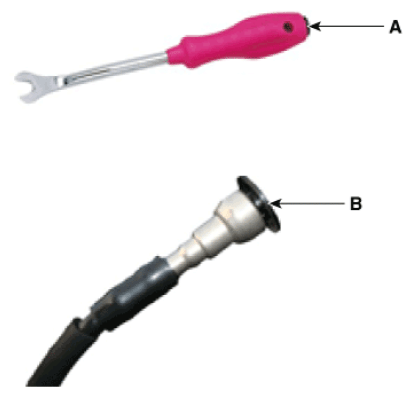

When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).

If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA
