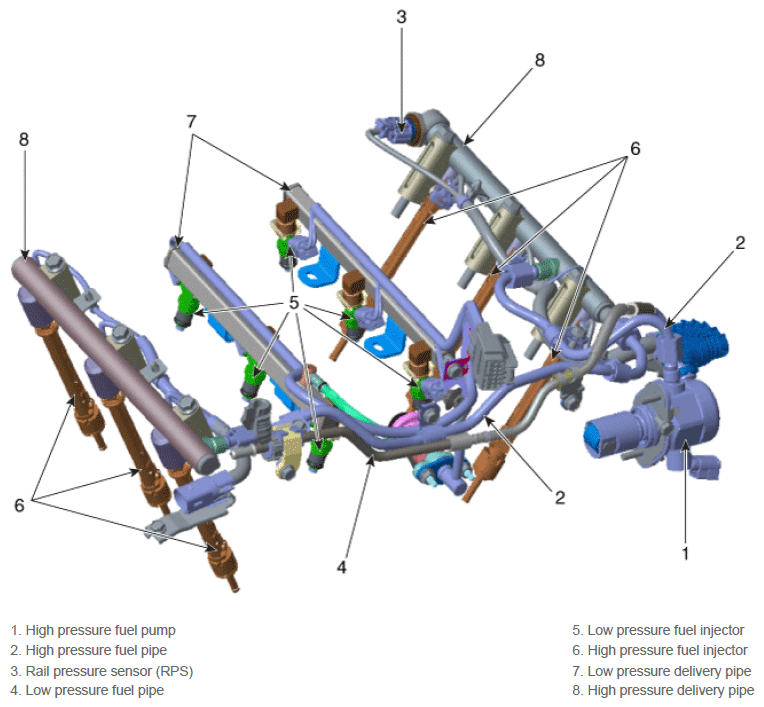

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

Courtesy of HYUNDAI MOTOR AMERICA

WARNING:

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
