Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

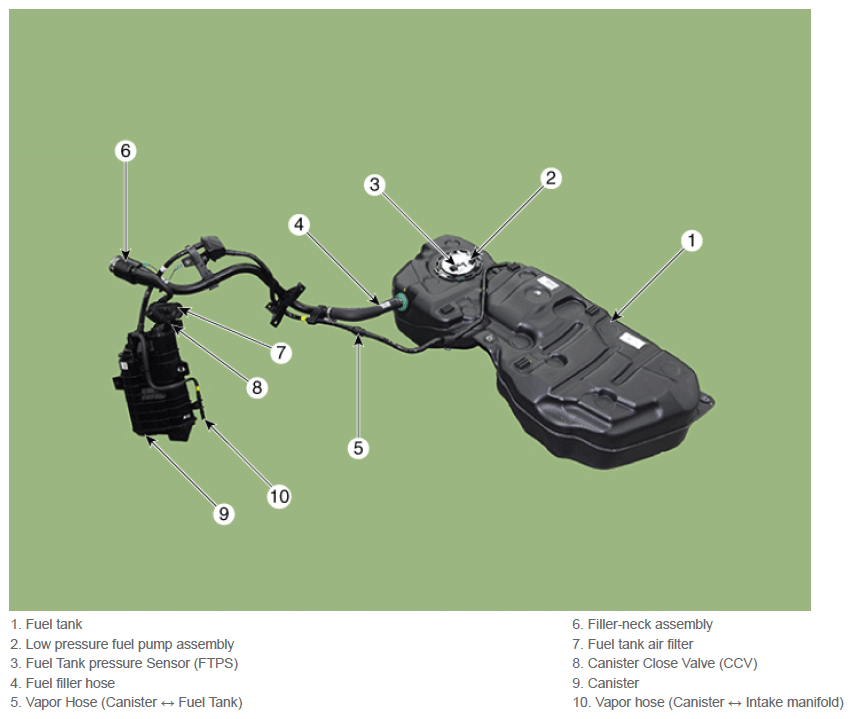

G16840762Courtesy of HYUNDAI MOTOR AMERICA

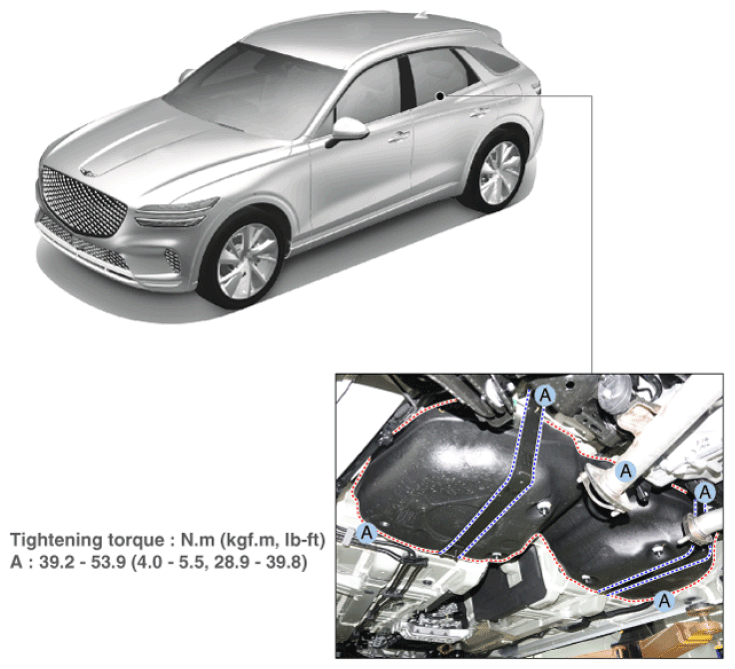

Fig 1: Fuel Tank Components Location With Torque Specifications
G16840763Courtesy of HYUNDAI MOTOR AMERICA
