Service Information

WARNING: This page is about a different variant/trim than selected.

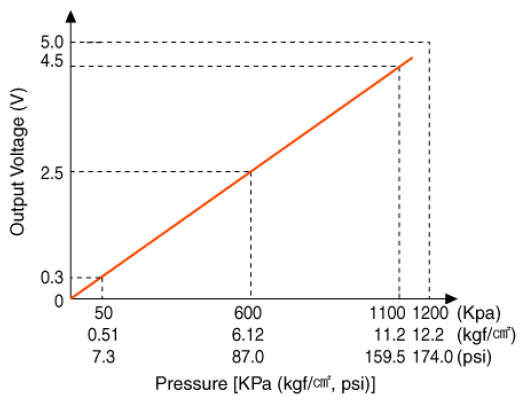

Pressure [KPa (kgf/cm2, psi)] Output Voltage (V)
50 (0.51, 7.3) 0.3
600 (6.12, 87.0) 2.5
1100 (11.2, 159.5) 4.5
G16840837Courtesy of HYUNDAI MOTOR AMERICA
