Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")

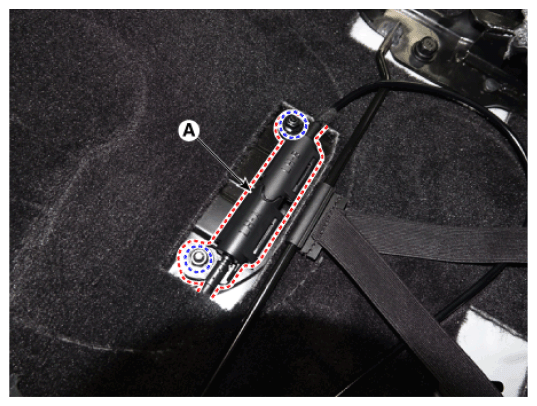

- Remove the seat folding cable bracket (A).

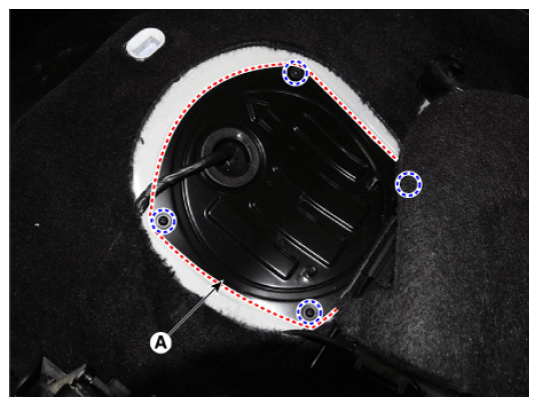

- Remove the fuel pump service cover (A) after loosening the mounting screws.

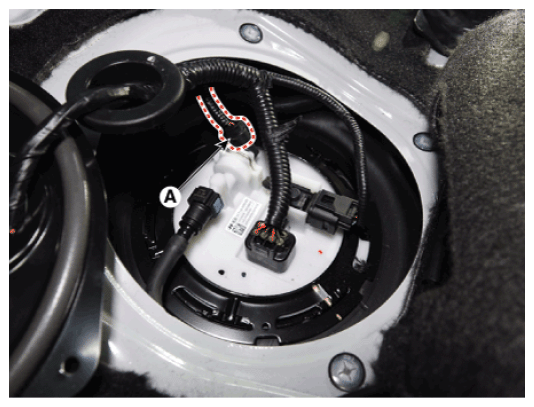

- Disconnect the fuel pressure sensor connector (A).

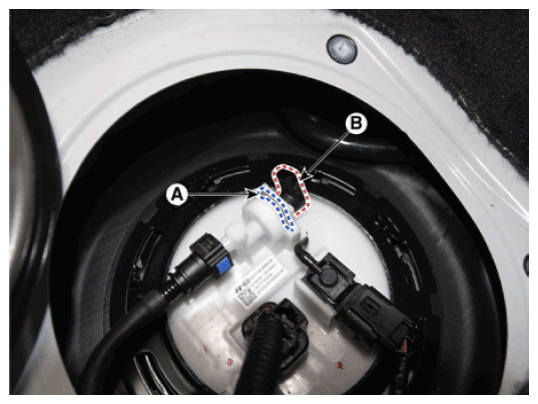

- Disconnect the fuel pressure sensor fixing pin (A).
- Remove the fuel pressure sensor (B) from the fuel pump.
- Install in the reverse order of removal.
