Low Pressure Fuel Line [Engine Room ↔ Fuel Tank]

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner [LH].
(Refer to Engine Mechanical System - "AIR CLEANER ")

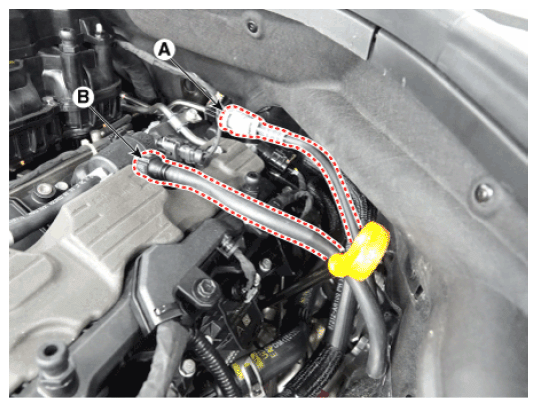

Disconnect the fuel feed line quick-connector (A).

Disconnect the vapor quick-connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

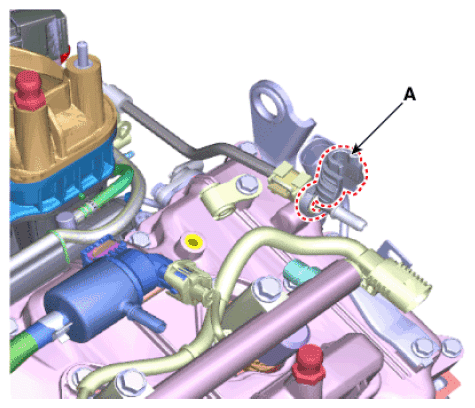

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

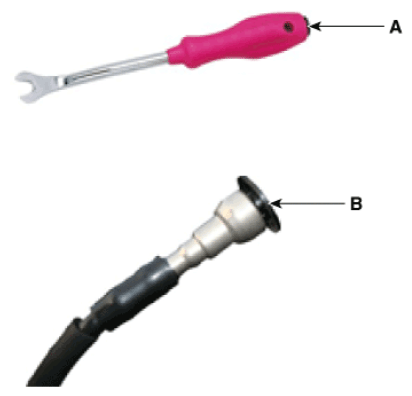

When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).

If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

Lift the vehicle.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

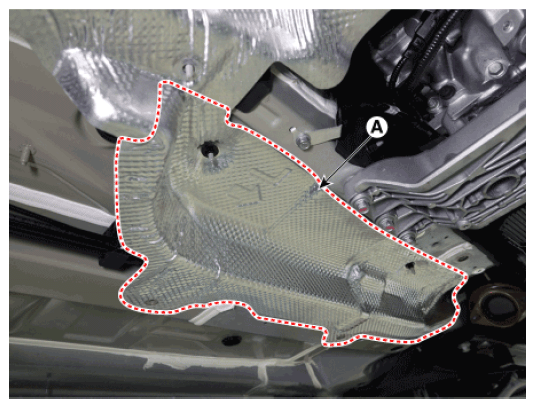

Remove the LH heat protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

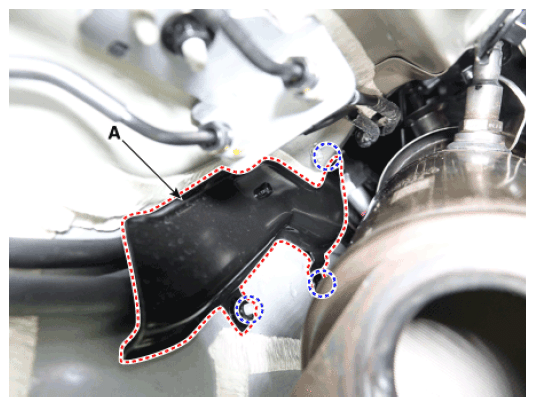

Remove the fuel line bracket (A) after loosening the mounting nuts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

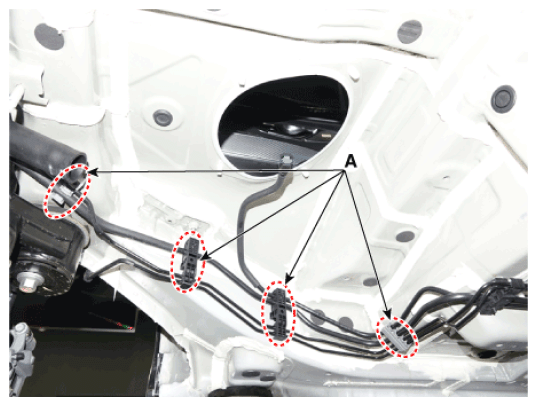

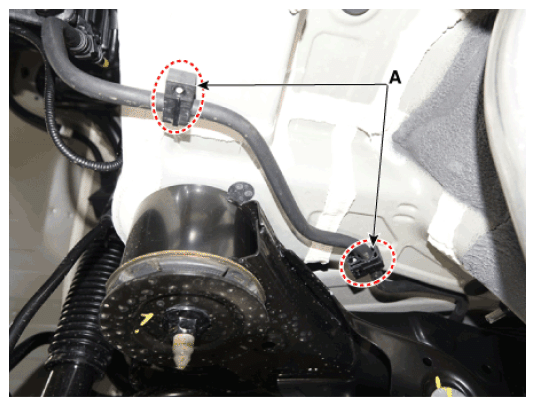

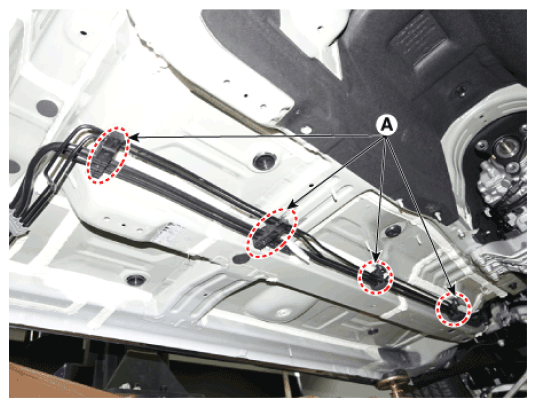

Open the vapor tube and fuel feed line fixing clip (A) to using driver.
Remove the fuel line.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
