High Pressure Fuel Line [High Pressure Fuel Pump ↔ High Pressure Delivery Pipe]
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

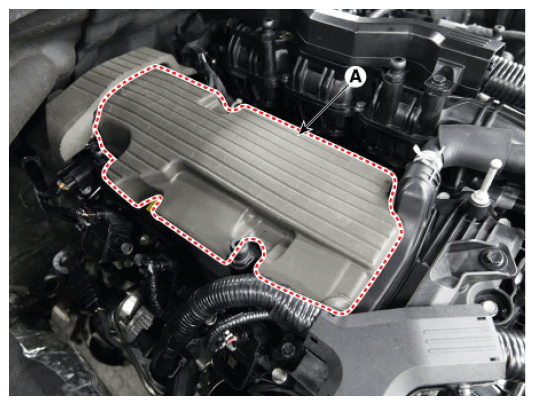

- Remove the RH injector foam (A).

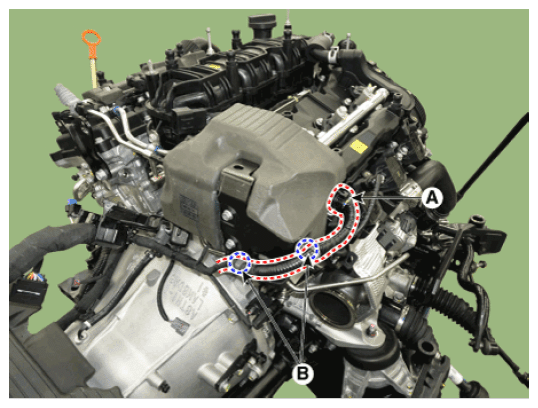

- Disconnect the GDI injector connector (A) and then remove the wiring clip (B).

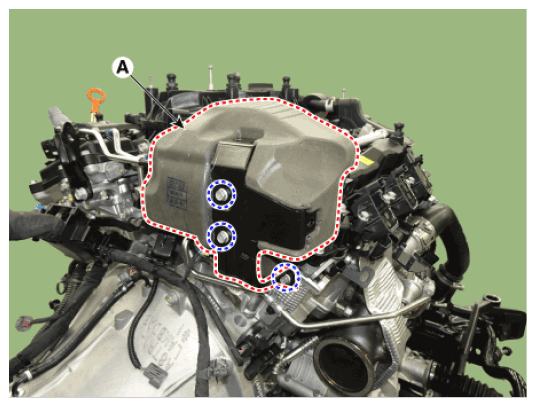

- After loosening the mounting bolts, then remove the high pressure fuel pump cover and form (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

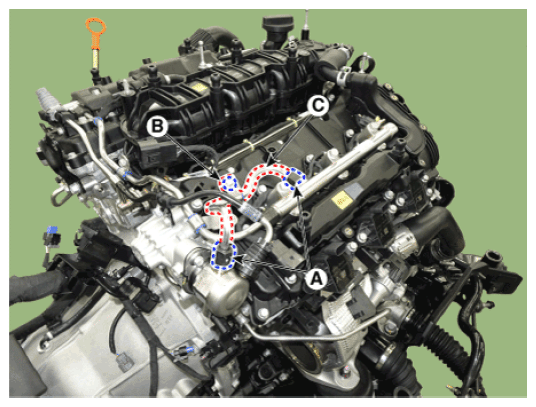

- Remove the high pressure fuel pipe (C) after loosening the flange nut (A) and function block bolt (B).
Tightening torque:
- 29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
- 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
