High Pressure Fuel Line [High Pressure Fuel Pump ↔ High Pressure Delivery Pipe]

WARNING: This page is about a different variant/trim than selected.

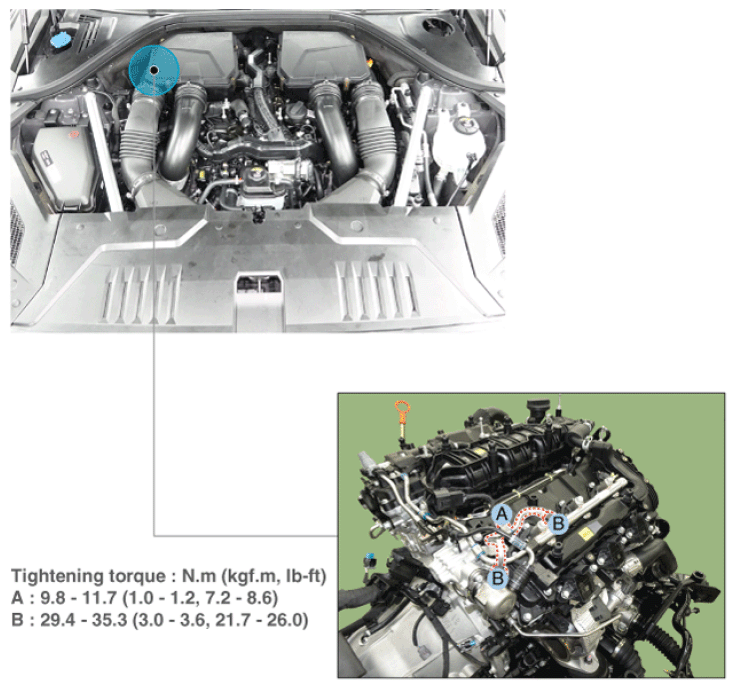

Fig 1: High Pressure Fuel Line Components Location With Torque Specifications (High Pressure Fuel Pump ↔ High Pressure Delivery Pipe)

Courtesy of HYUNDAI MOTOR AMERICA
