Low Pressure Delivery Pipe

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

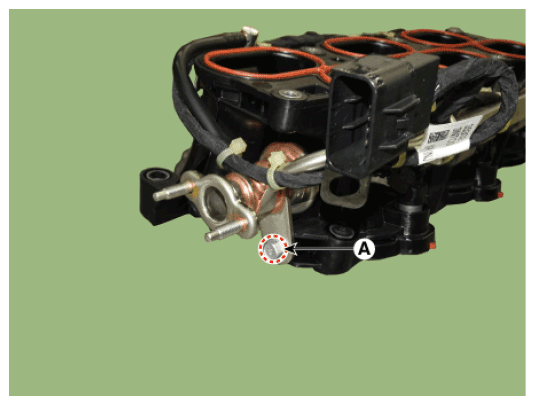

Remove the mounting bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

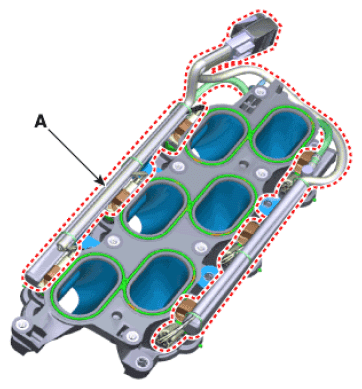

Remove the low pressure delivery pipe (A) from the intake manifold
NOTE:
- When removing/installing the low pressure delivery pipe (A), take measures not to allow the foreign matter to enter the cylinder.
- If foreign matter enters the cylinder/intake manifold, immediately remove it.
Courtesy of HYUNDAI MOTOR AMERICA

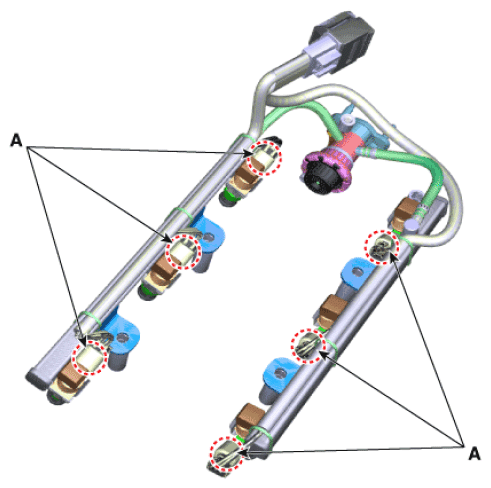

Disconnect the injector conductors (A).

Courtesy of HYUNDAI MOTOR AMERICA

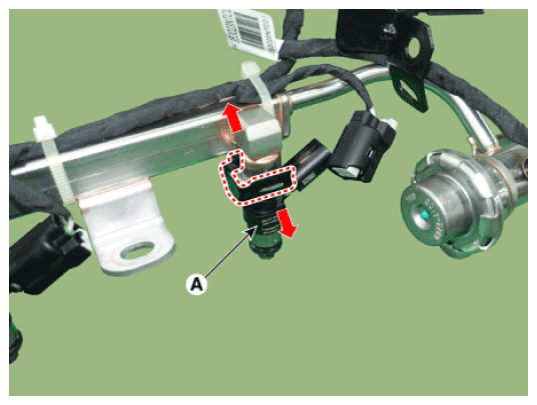

Release the fixing clip and then remove the injector (A) from delivery pipe.

Courtesy of HYUNDAI MOTOR AMERICA
