High Pressure Delivery Pipe

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

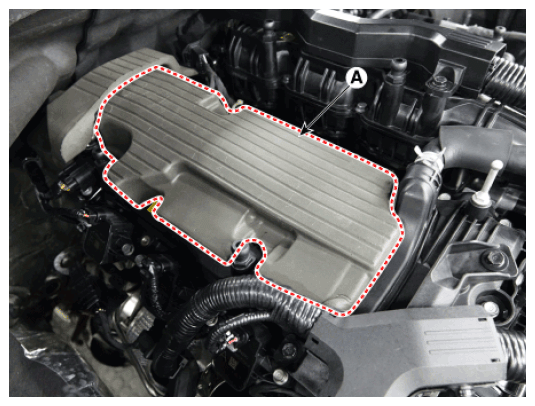

Remove the RH injector foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

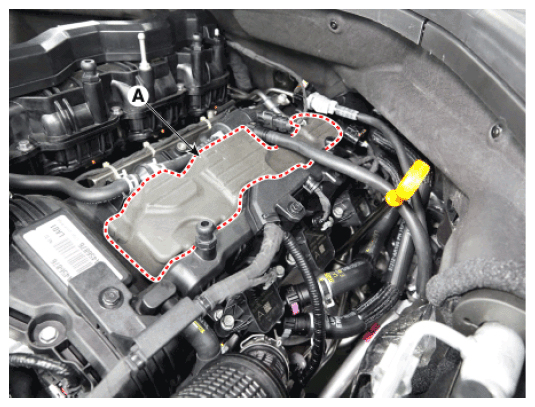

Remove the LH injector foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

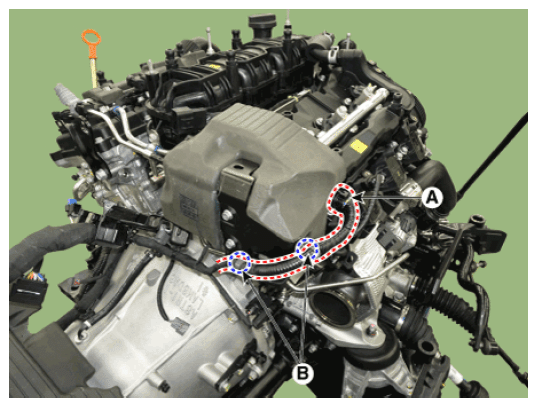

Disconnect the GDI injector connector (A) and then remove the wiring clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

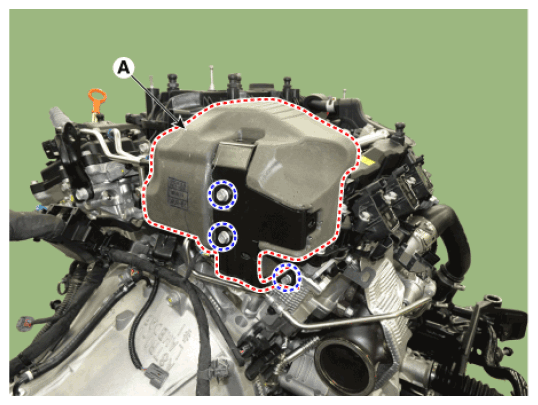

After loosening the mounting bolts, then remove the high pressure fuel pump cover and form (A).
Tightening torque

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

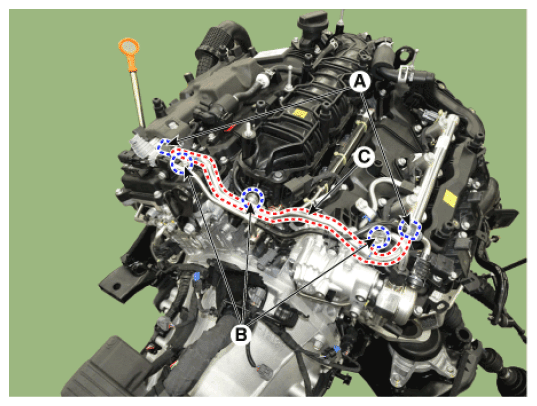

Remove the high pressure fuel pipe (C) after loosening the flange nut (A) and function block bolt (B).

Tightening torque

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

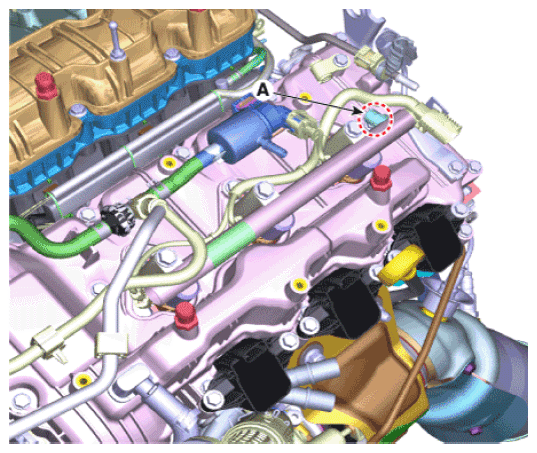

After removing the high pressure fuel pipe, seal the inside of GDI fuel rail/connection (A) to prevent contamination.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

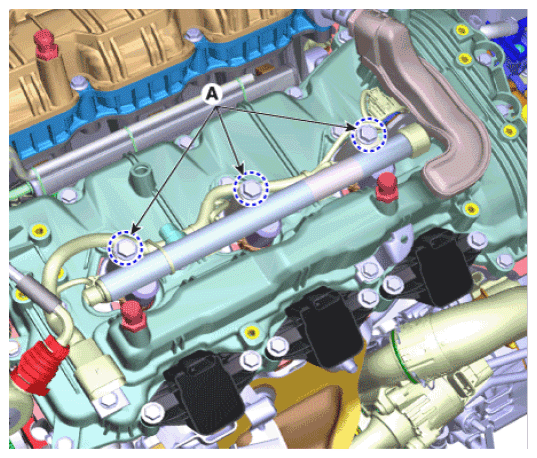

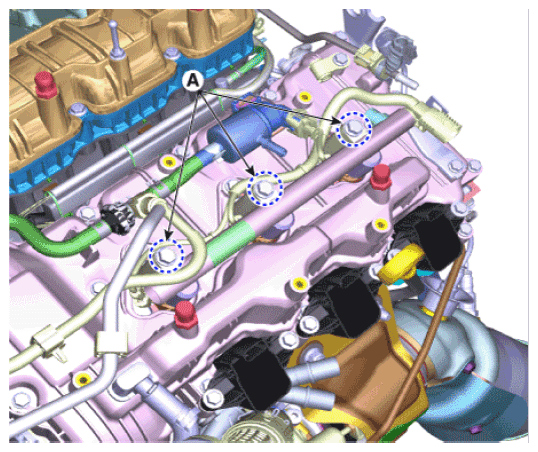

Loosen the mounting bolt (A), and remove the delivery pipe & injector assembly.

Tightening torque:

18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

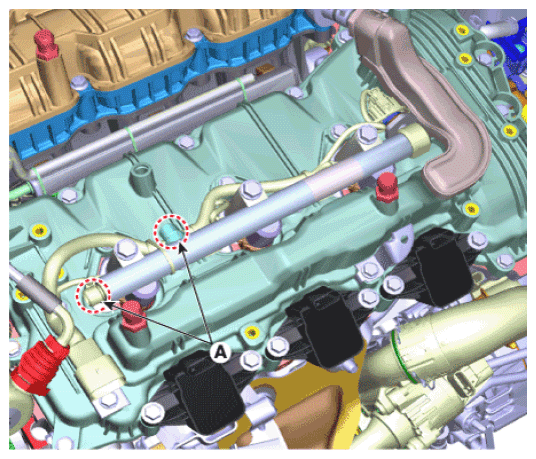

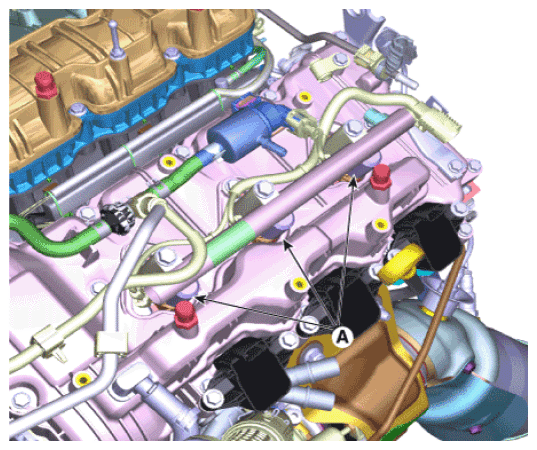

Spray the compressed air to remove the foreign matter inside the injector hole (A) before removing the GDI fuel rail.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

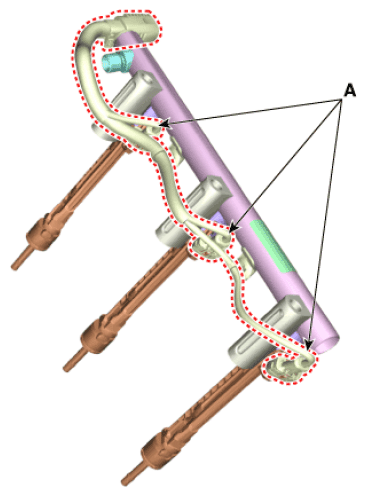

Disconnect the injector conductors (A).

Courtesy of HYUNDAI MOTOR AMERICA

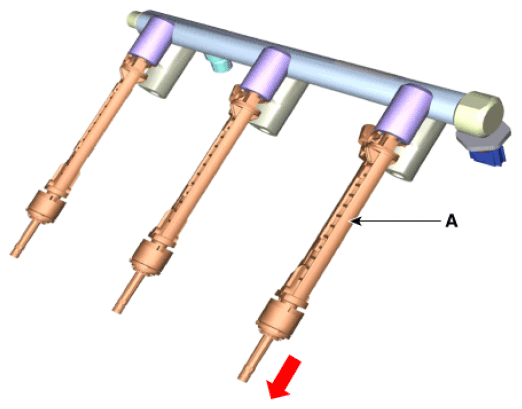

Remove the injector (A) in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA
