Delivery Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE:

When tightening the high-pressure delivery pipe bolt, refer to the figures shown below.

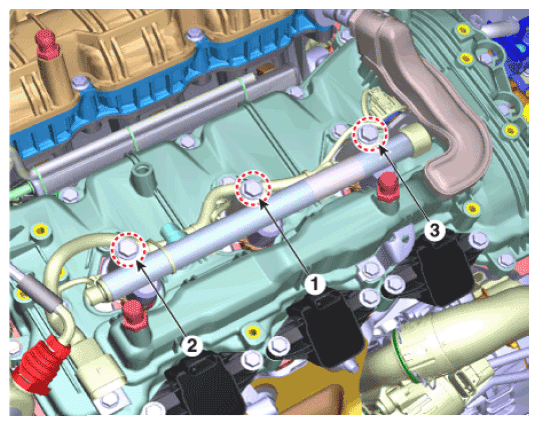

Fig 1: High-Pressure Delivery Pipe Bolts Tightening Sequence (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

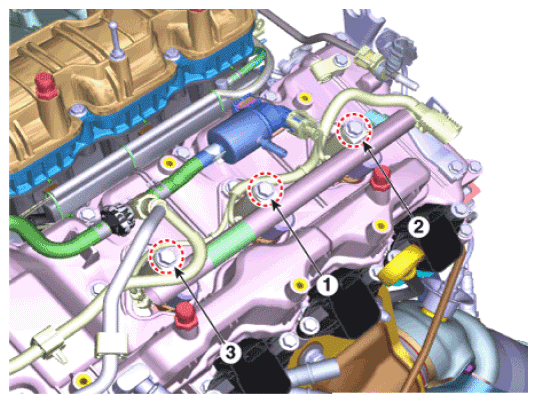

Fig 2: High-Pressure Delivery Pipe Bolts Tightening Sequence (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Use the SST (09314-L1100) and spaner torque wrench (27 mm) to install the high pressure fuel pipe flange nut (A).

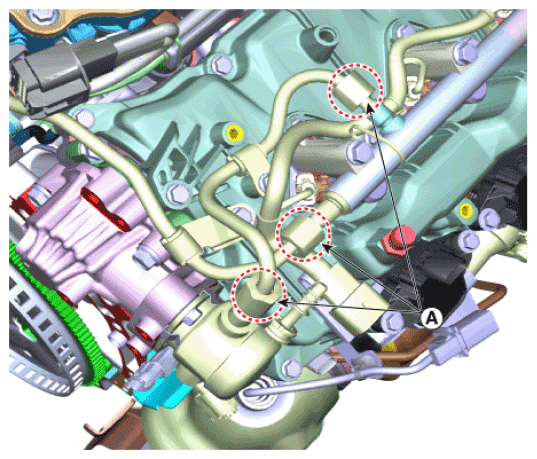

G16840907

Courtesy of HYUNDAI MOTOR AMERICA

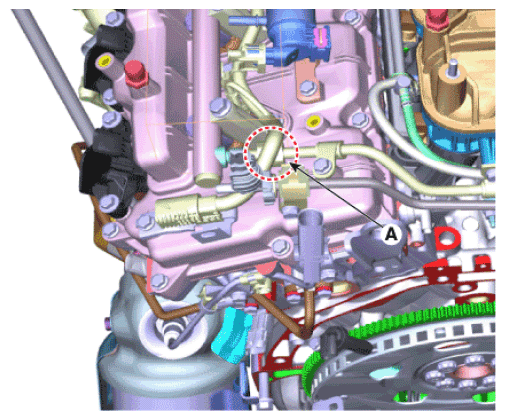

G16840908

Courtesy of HYUNDAI MOTOR AMERICA

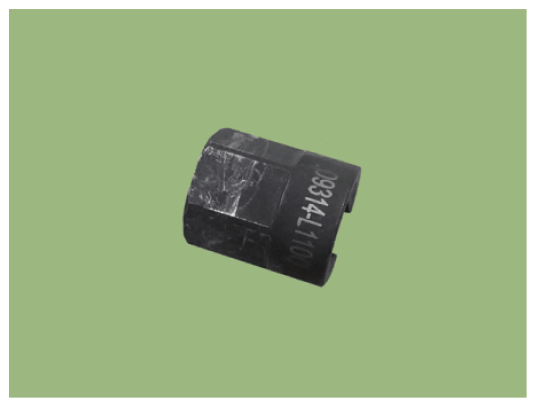

G16840909

Courtesy of HYUNDAI MOTOR AMERICA

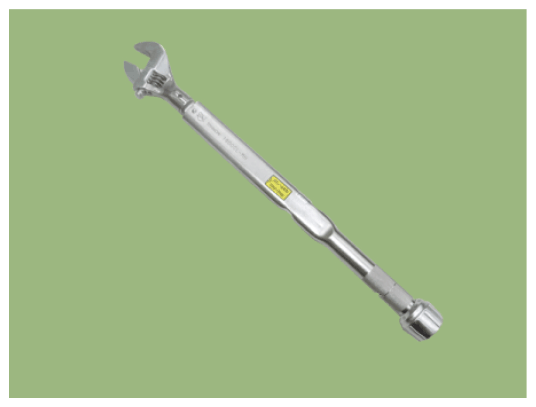

G16840910

Courtesy of HYUNDAI MOTOR AMERICA

Do not reuse the high pressure fuel pipe.
Be careful not to transform the shape of the high pressure fuel pipe.
Torque wrench should not be tilt when you tighten the nut.
Follow the order and the tightening torque when you assemble.
Inspect fuel leakage after high pressure fuel pipe assembly.
