[Bank 2]

WARNING: This page is about a different variant/trim than selected.

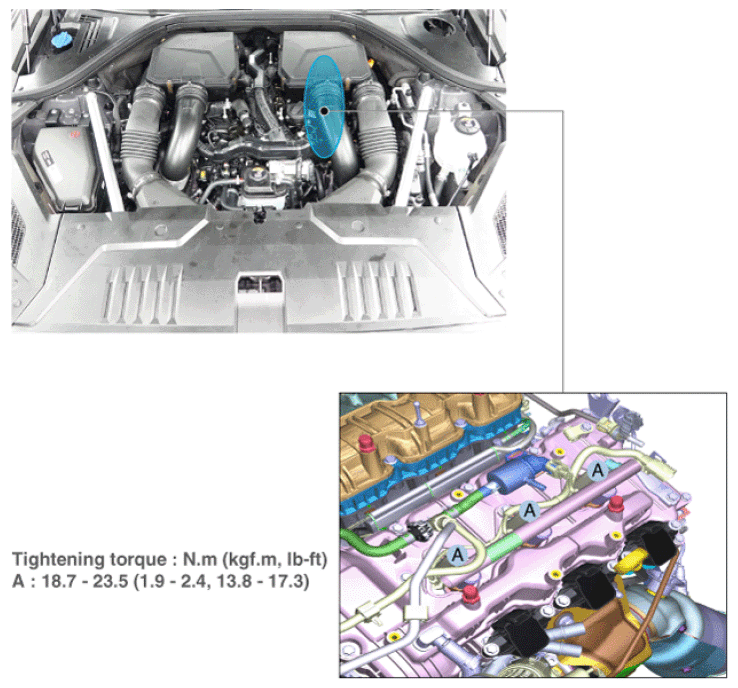

Fig 1: High Pressure Delivery Pipe Components Location With Torque Specifications (Bank 2)
G16840887Courtesy of HYUNDAI MOTOR AMERICA
