Section 12 (Engine Control System - 3.5L)
>>
Variable Force Solenoid (VFS)
>>
Schematic Diagrams
>>

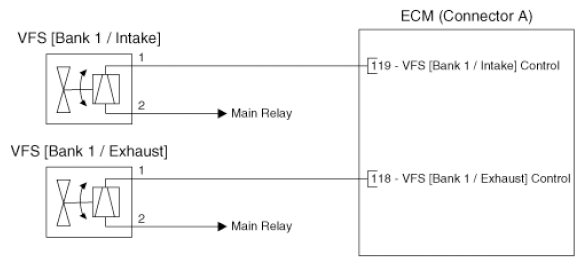

Circuit Diagram
>>
Variable Force Solenoid (VFS) [Bank 1]
Variable Force Solenoid (VFS) [Bank 1]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
