Knock Sensor [Bank 2]
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the RH engine mounting support bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

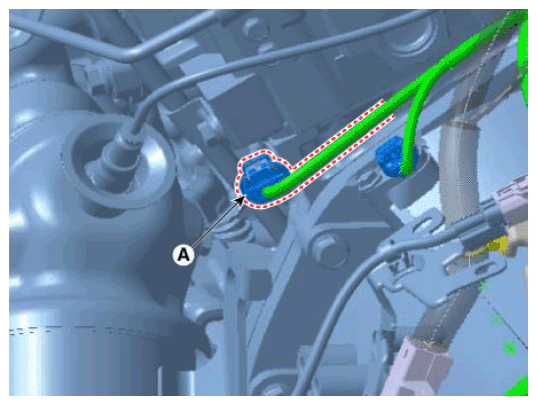

- Disconnect the knock sensor connector (A).

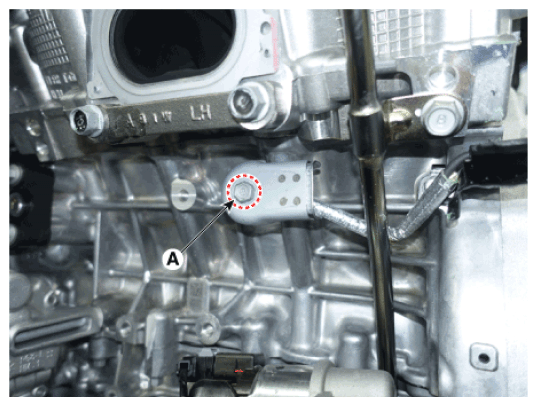

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Tightening Torque :
15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb-ft)
- Install in the reverse order of removal.
