Section 12 (Engine Control System - 3.5L)
>>
Heated Oxygen Sensor (WR-HO2S, HO2S)
>>
Schematic Diagrams
>>

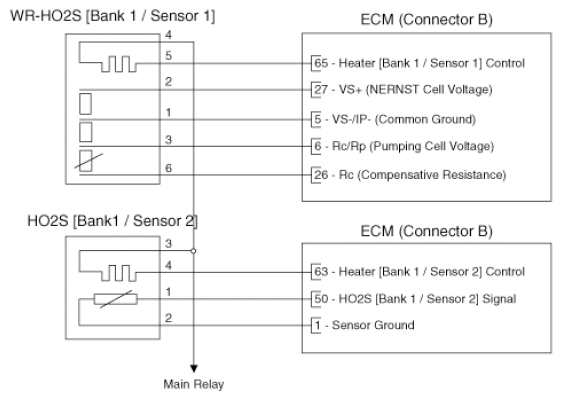

Circuit Diagram
>>
Heated Oxygen Sensor (HO2S) [Bank 1]
Heated Oxygen Sensor (HO2S) [Bank 1]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
