Heated Oxygen Sensor (WR-HO2S) [Bank 2/Sensor 1]

WARNING: This page is about a different variant/trim than selected.

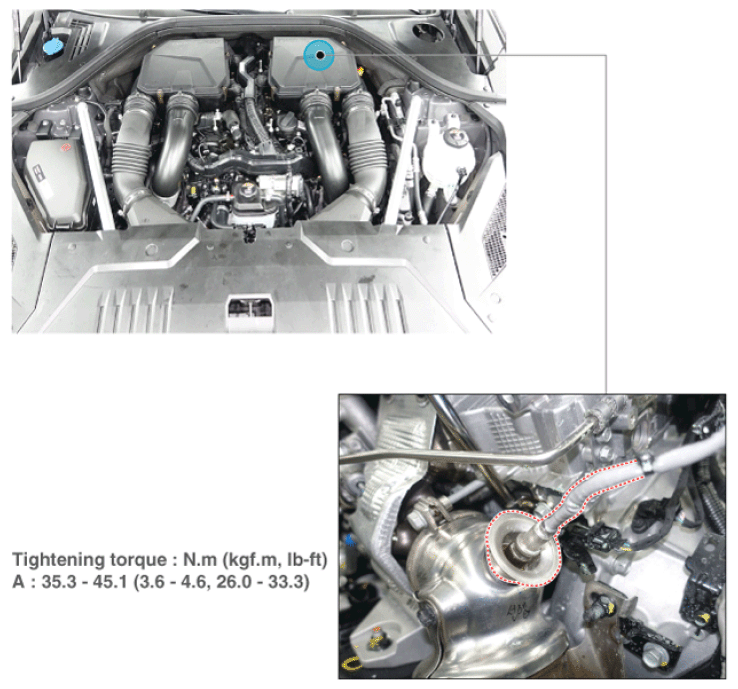

Fig 1: Heated Oxygen Sensor (WR-HO2S) Components Location With Torque Specifications (Bank 2 / Sensor 1)
G16840627Courtesy of HYUNDAI MOTOR AMERICA
