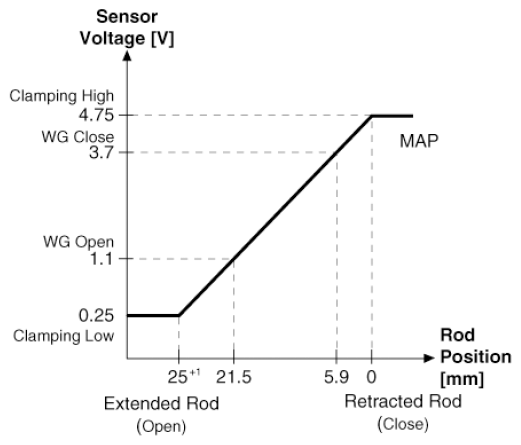

[EWAG Position Sensor]
WARNING: This page is about a different variant/trim than selected.
| Output Voltage [V] |
Operating Angle [%] |
Range of Rod [mm] |
| 3.6 - 3.8 [Setting Position] |
0 |
0 |
| 3.1 - 3.3 |
20 |
3.0 |
| 2.6 - 2.8 |
40 |
6.0 |
| 2.0 - 2.2 |
60 |
9.6 |
| 1.5 - 1.7 |
80 |
12.6 |
| 1.0 - 1.2 |
100 |
15.6 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
