Section 12 (Engine Control System - 3.5L)
>>
Electric Waste Gate Actuator (EWGA)
>>
Schematic Diagrams
>>

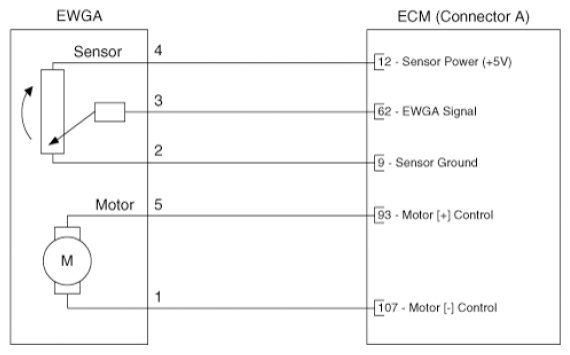

Circuit Diagram
>>

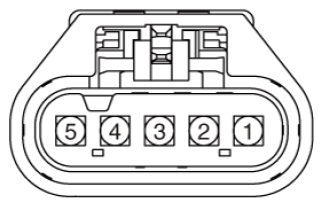

Electric WGT Control Actuator [Bank 1]
Electric WGT Control Actuator [Bank 1]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
