Camshaft Position Sensor (CMPS) [Bank 2/Intake]

WARNING: This page is about a different variant/trim than selected.

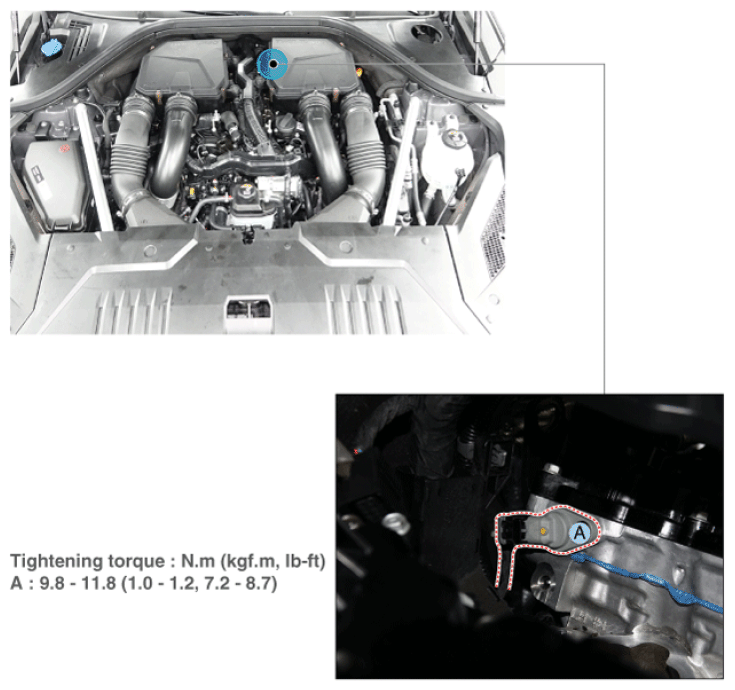

Fig 1: Camshaft Position Sensor Components Location With Torque Specifications (Bank 2 / Intake)
G16840600Courtesy of HYUNDAI MOTOR AMERICA
