Valve Body: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedures.

NOTE:

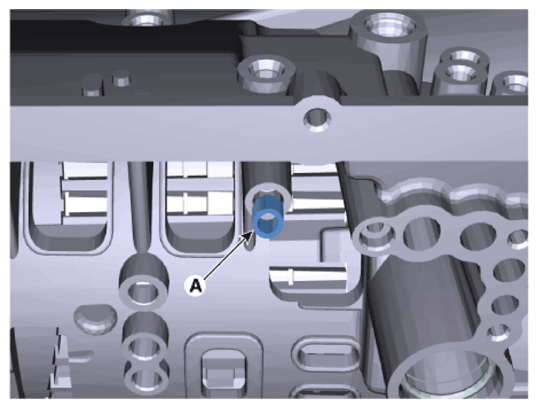

Check if the pipe seal (A) is inserted on the marked area before mounting the valve body assembly.

Courtesy of HYUNDAI MOTOR AMERICA

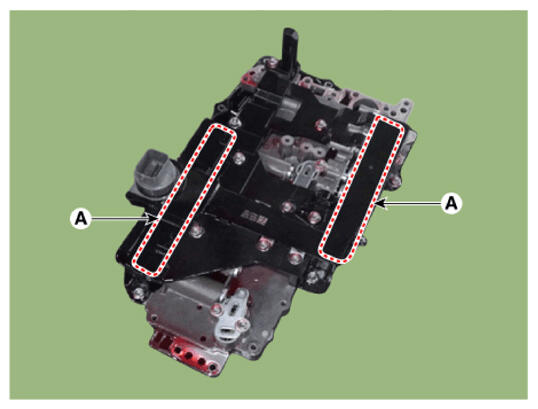

When installing, after mounting the E-module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.

Courtesy of HYUNDAI MOTOR AMERICA

Check the ATF level after refilling the automatic transmission with fluid.
(Refer to Automatic Transmission System - "Automatic Transmission Fluid (ATF)" - INSPECTION )
Clear the diagnostic trouble codes (DTC) using the diagnostic tool.
NOTE:
- Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the diagnostic tool.
Reset the automatic transmission adaptive values using the diagnostic tool.

Courtesy of HYUNDAI MOTOR AMERICA

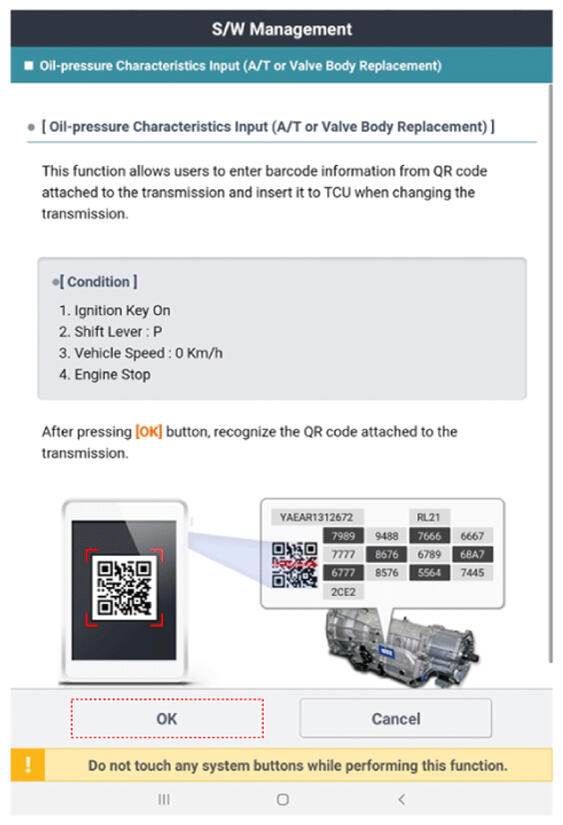

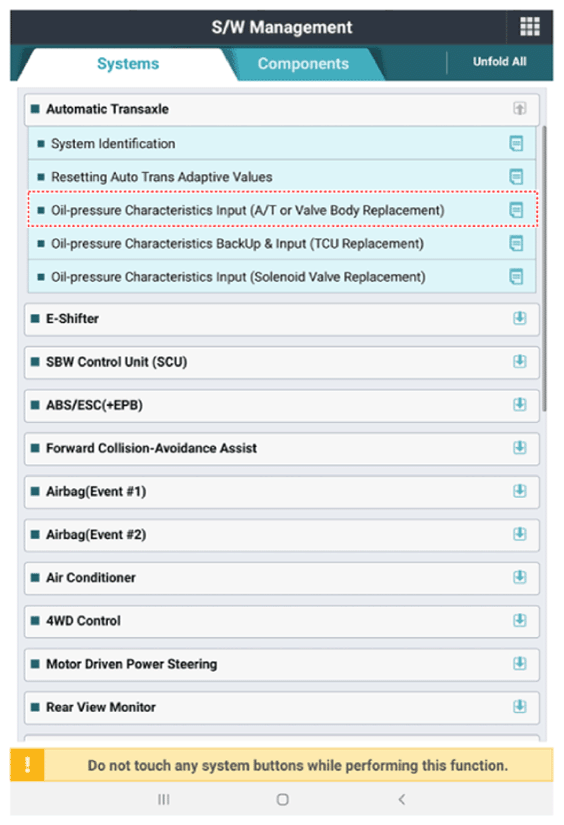

Perform the oil pressure characteristics input (A/T or valve body replacement) procedure.

Courtesy of HYUNDAI MOTOR AMERICA

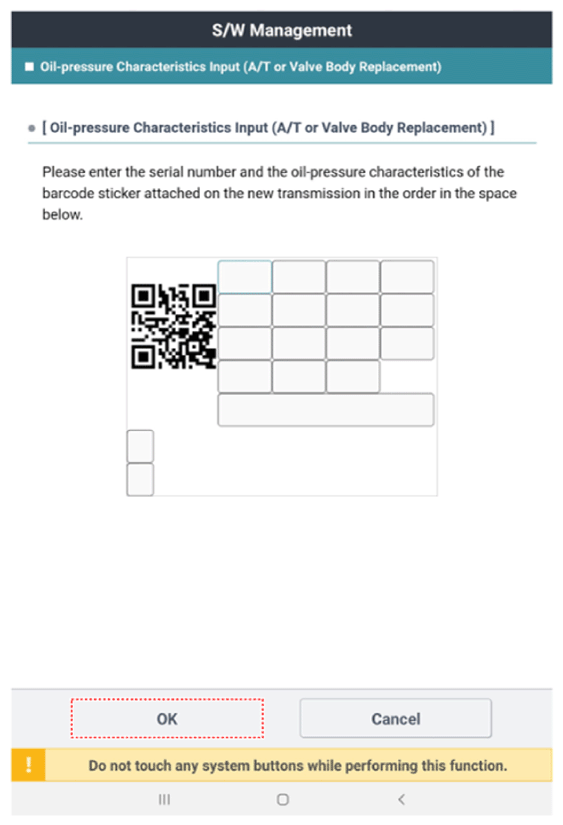

Record the bar code data (oil pressure characteristics) on the automatic transmission case or valve body and then input it manually onto the diagnostic tool.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transmission Control System - "ADJUSTMENT ")
Be sure to check for leaks in each connection part when the engine is started.
