Electronic Oil Pump (EOP): Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedures.

NOTE:

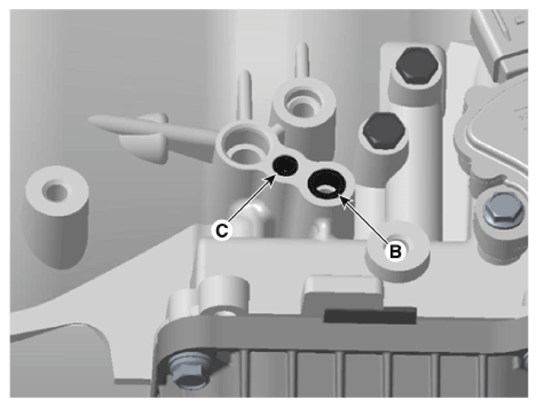

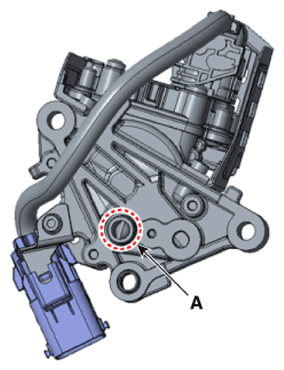

Check the assembled state of o-ring (A) and pipe seal (B), (C) before reinstalling the EOP.

When replacing the EOP, the existing pipe seal (B), (C) must be replaced with a new one.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Refill the oil and then check the oil level.
(Refer to Hydraulic system - "FLUID ")
