Description And Operation: Description

WARNING: This page is about a different variant/trim than selected.

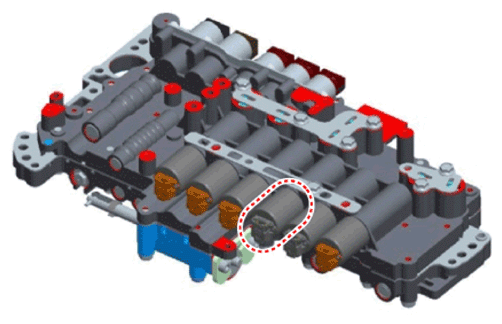

Component location: Mounted on the valve body.

Courtesy of HYUNDAI MOTOR AMERICA
Function: 35R Clutch control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the 35R Clutch.
