Wiring harness ground state inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:

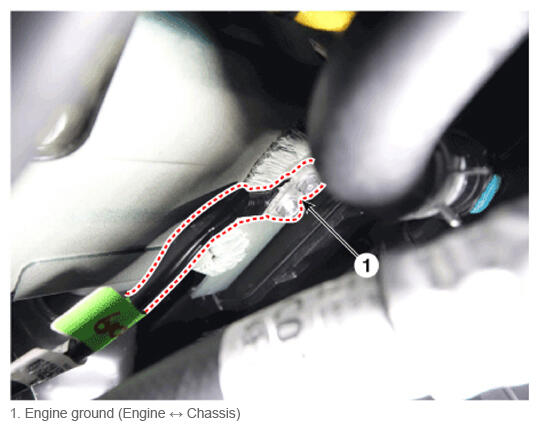

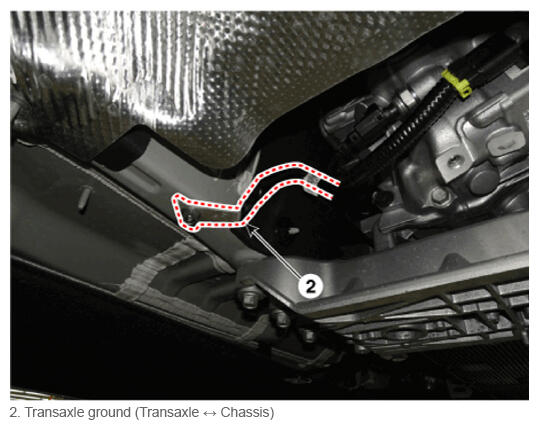

- Ground state
- Mounting bolt tightening state (Chassis)
- Mounting bolt tightening state (Engine)
- Check the status of ground fault by chassis paint
