DC DC Converter: Removal: [400W]
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the luggage side trim.
(Refer to Body (Interior and Exterior) - "LUGGAGE SIDE TRIM ")

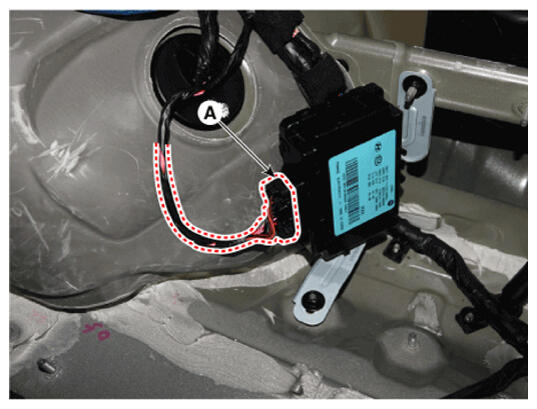

- Disconnect the DC/DC converter connector (A).

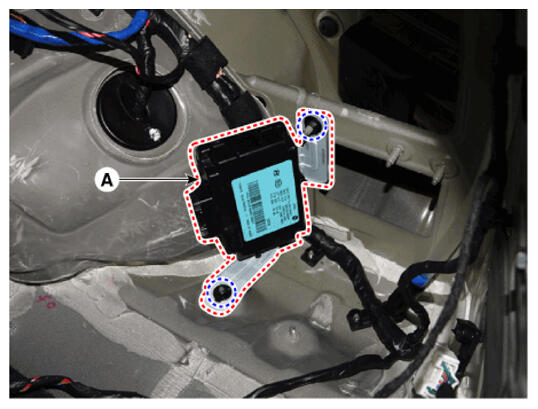

- Remove the DC/DC converter (A).
