Battery Tester (GDS Inspection)
WARNING: This page is about a different variant/trim than selected.
- Connect the diagnostic device (GDS) to the connector under the crash pad of the driver seat.

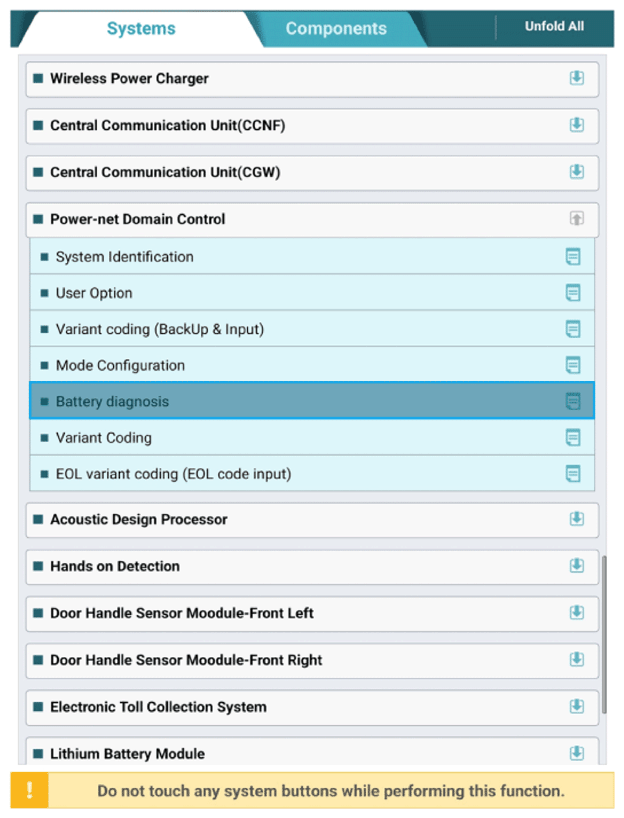

- Perform "Battery Diagnosis" procedure with diagnostic tool.
(S/W Management → Integrated Central Control Unit → Battery diagnosis)
- Take measure according to the diagnosis result.
Battery diagnosis result statement
| Item | Code | |
|---|---|---|
| Replace | Internal defect | R01 |
| Aging | R02 | |
| Discharge | Excess dark current | D01 |
| Aftermarket electronic device | D02 | |
| Excess use | D03 | |
| Lack of driving | D04 | |
| Normal | D00 | |
