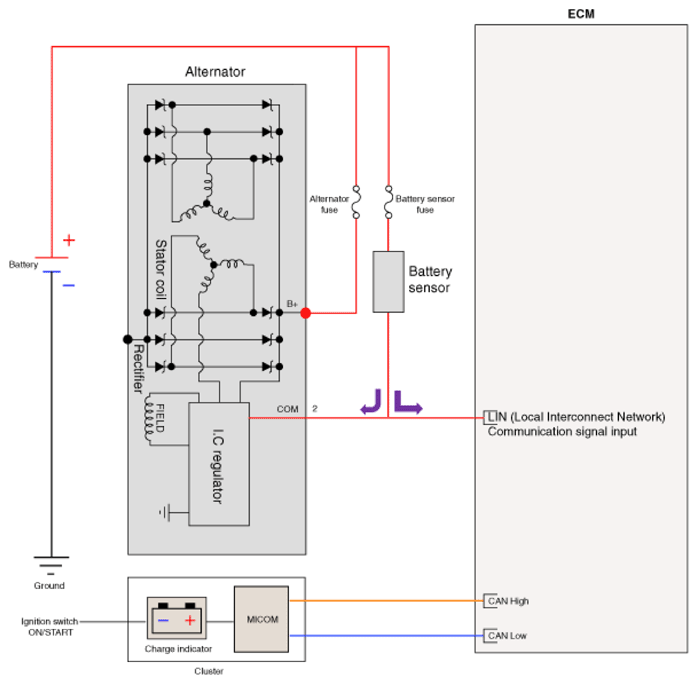

Circuit Diagram
WARNING: This page is about a different variant/trim than selected.
Information
- COM signal - LIN communication control (Alternator target voltage data signal output, Alternator electric load signal input)
- Battery charge warning lamp
- Illuminates the battery warning lamp to the instrument cluster via CAN communication in case of a charging system failure. (Conditions for turning on the lamp - overcharge, over discharge, a field coil blown inside the alternator)
- B+ Terminal - The output voltage from the generator travels to the battery via the B+ terminal.
