Section 10 (Charging System - 3.5L): Alternator: Inspection: Rotor
WARNING: This page is about a different variant/trim than selected.

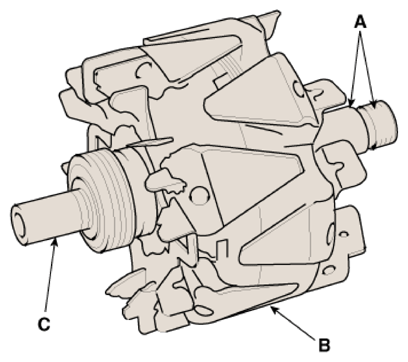

- Check that there is continuity between the slip rings (A).
- Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (C).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- If the rotor fails either continuity check, replace the alternator.
