Disassembly And Reassembly

WARNING: This page is about a different variant/trim than selected.

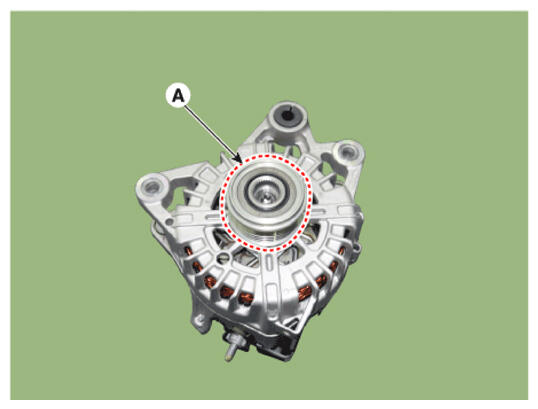

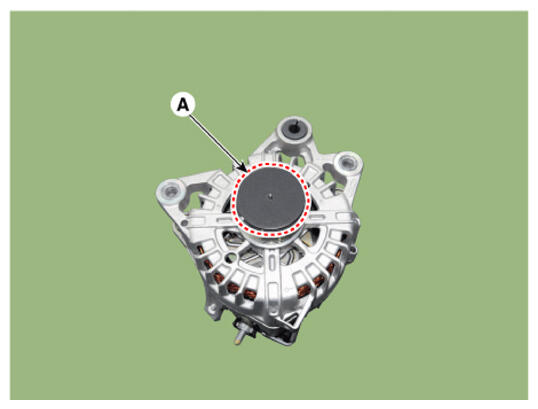

Remove the OAP cap (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new OAP cap.

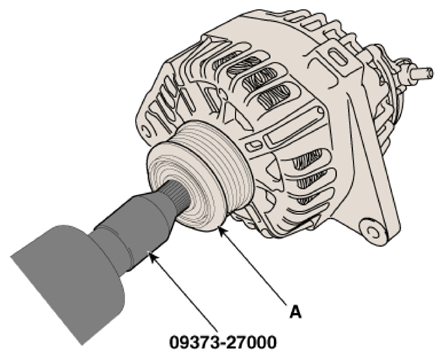

Remove the OAP pulley (A) by using the SST (09373-27000).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

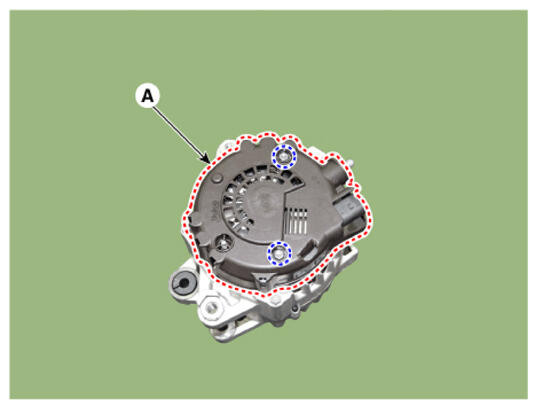

Remove the alternator cover (A) after loosening the mounting nut.

Courtesy of HYUNDAI MOTOR AMERICA

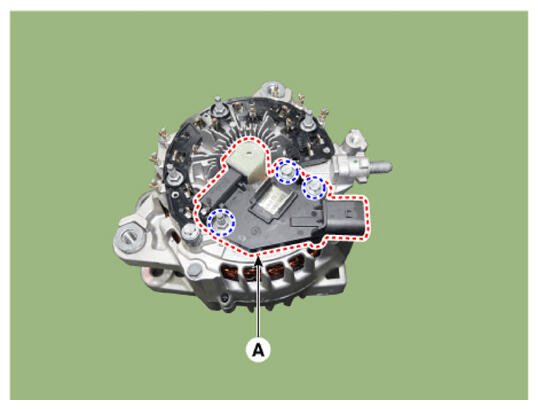

Remove the regulator assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

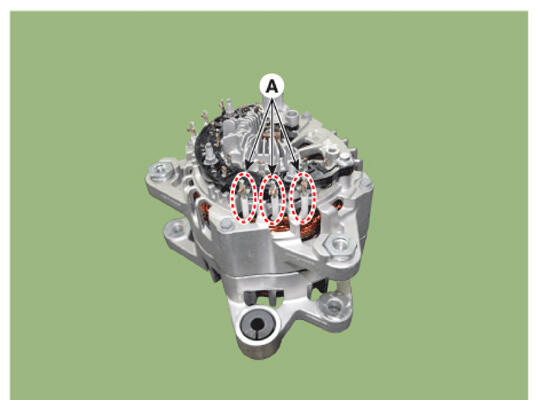

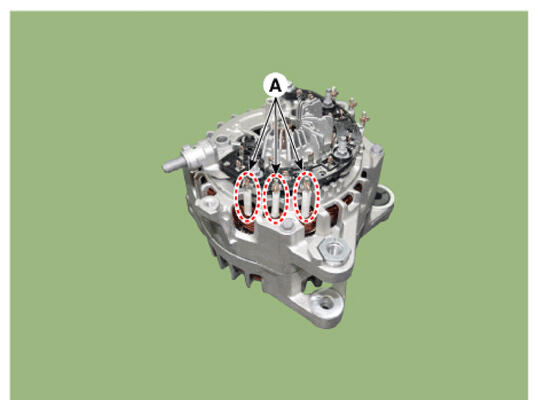

Unsolder the stator leads (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

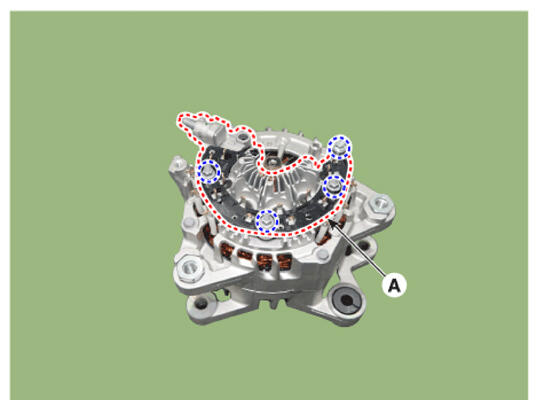

Remove the rectifier assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

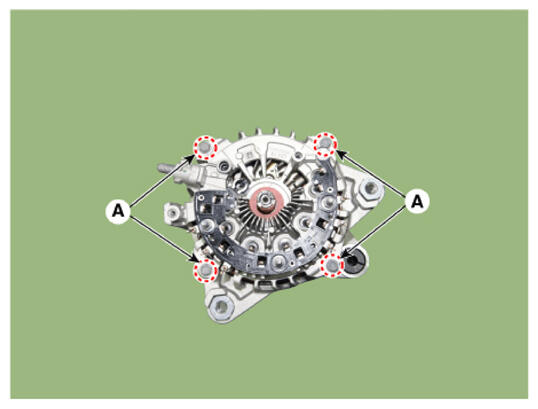

Remove the 4 through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

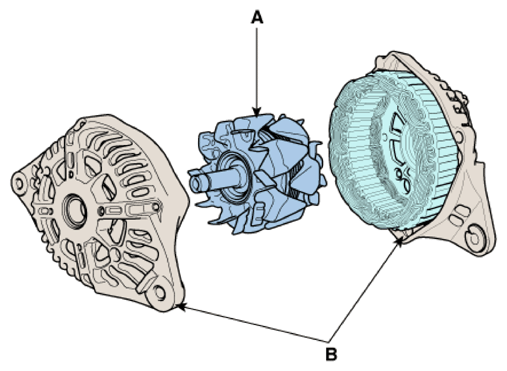

Separate the rotor (A) and cover (B).

Courtesy of HYUNDAI MOTOR AMERICA
Reassemble in the reverse order of disassembly.
NOTE:
- When installing, replace with new OAP cap.
