[Cylinder #1, #3, #5]

WARNING: This page is about a different variant/trim than selected.

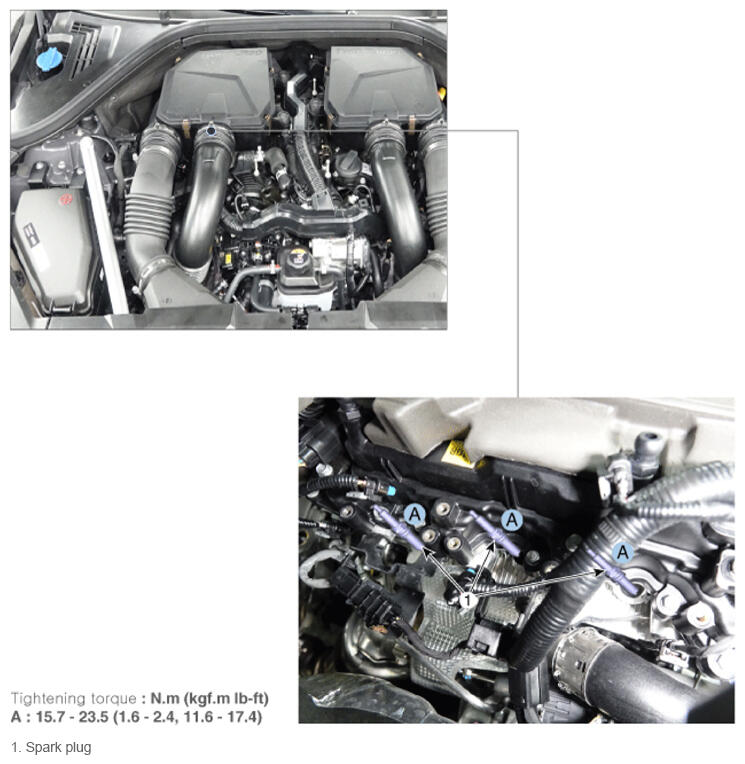

Fig 1: Spark Plug Components Location With Torque Specifications (Cylinder #1, #3, #5)

Courtesy of HYUNDAI MOTOR AMERICA
