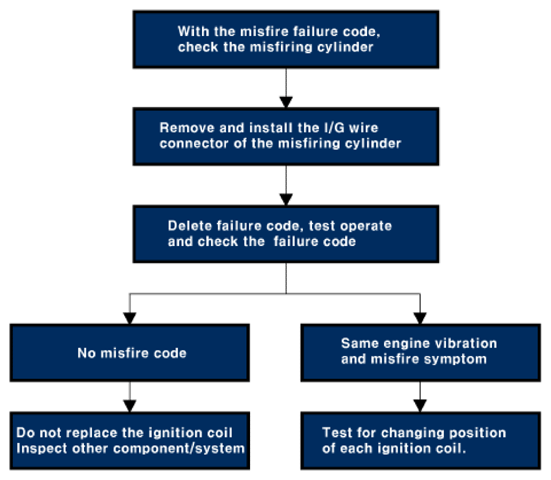

Connector assembly status test
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ignition coil connectors (A) and reinstall it.

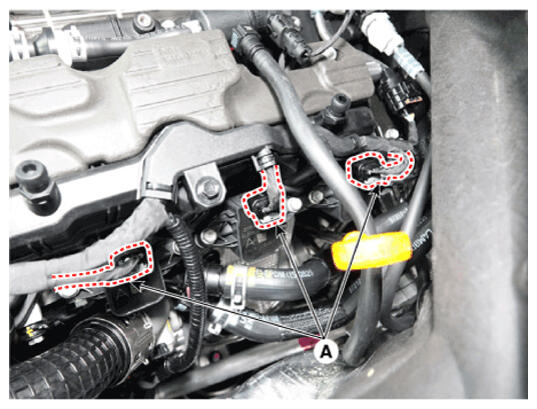

[Cylinder #1, #3, #5]
 Courtesy of HYUNDAI MOTOR AMERICA
|

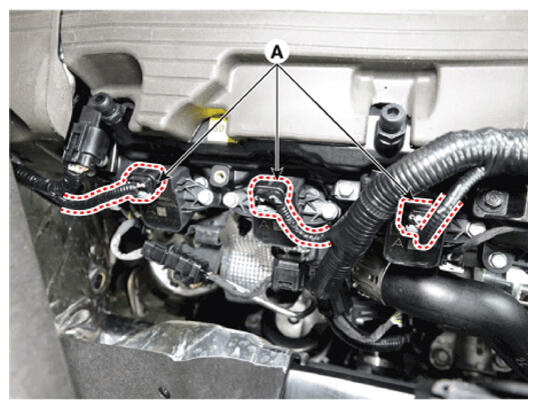

[Cylinder #2, #4, #6]
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
