Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the LH and RH air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

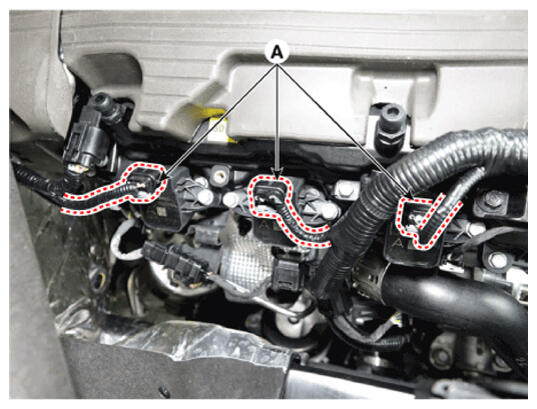

Disconnect the ignition coil connectors (A).
[Cylinder #1, #3, #5]

Courtesy of HYUNDAI MOTOR AMERICA

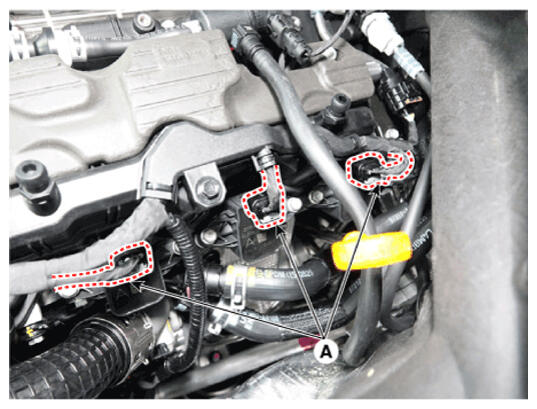

[Cylinder #2, #4, #6]

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

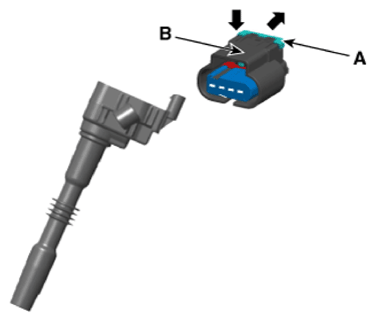

- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
Courtesy of HYUNDAI MOTOR AMERICA

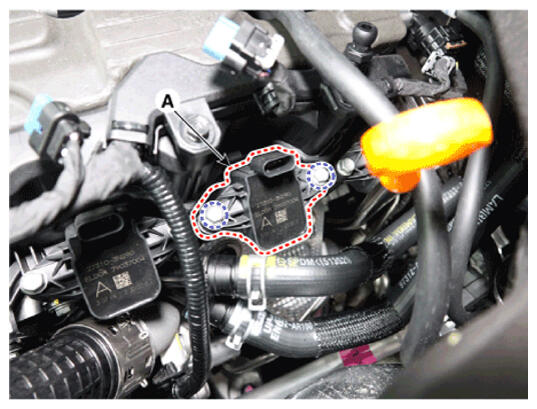

Remove the ignition coils (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

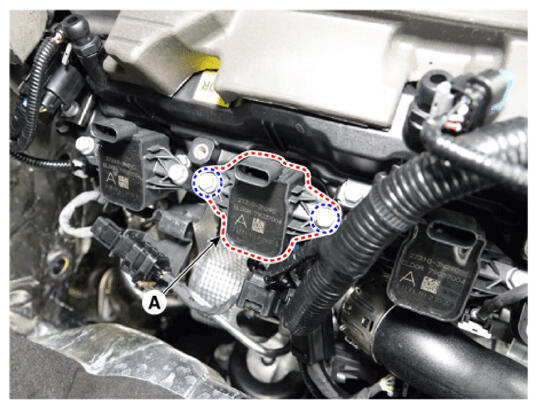

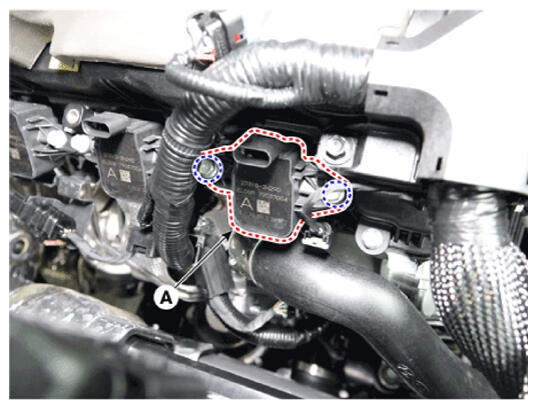

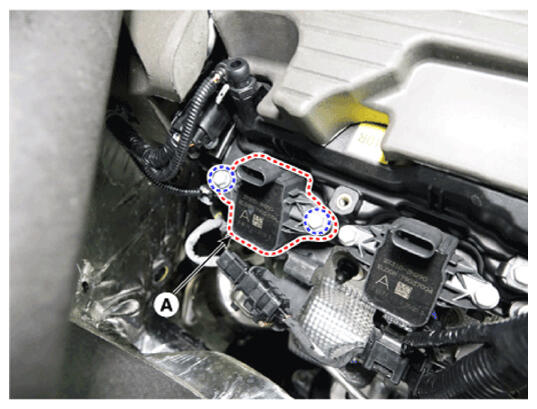

[Cylinder #1, #3, #5]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

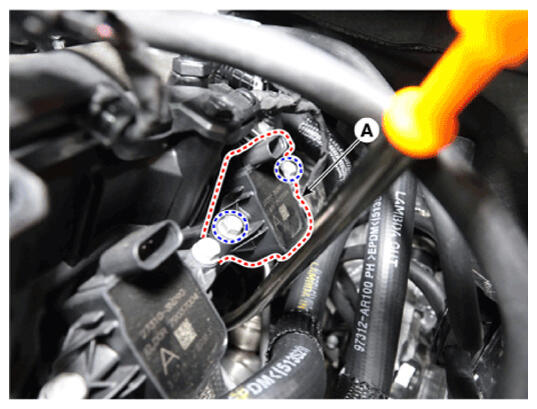

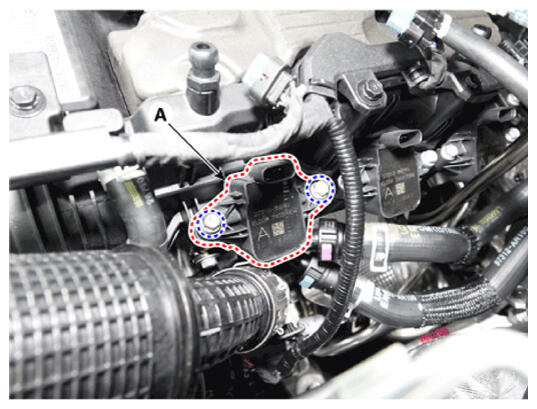

[Cylinder #2, #4, #6]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
