Ignition Coil: Cleaning
WARNING: This page is about a different variant/trim than selected.
Cleaning work is required to prevent the problem of contamination of the spark plug insulator by foreign substances attached to the bottom of the ignition coil boot.
- Prepare the soft cloth.

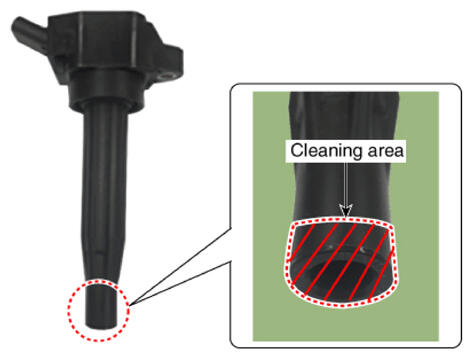

- Wipe the contaminants inside and outside the bottom of the ignition coil boot with the soft cloth as shown in the following figure.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
