Removal And Installation
- Release the residual pressure in fuel line.
Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")

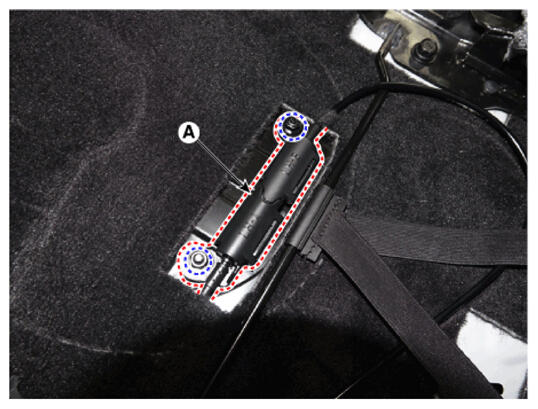

- Remove the seat folding cable bracket (A).

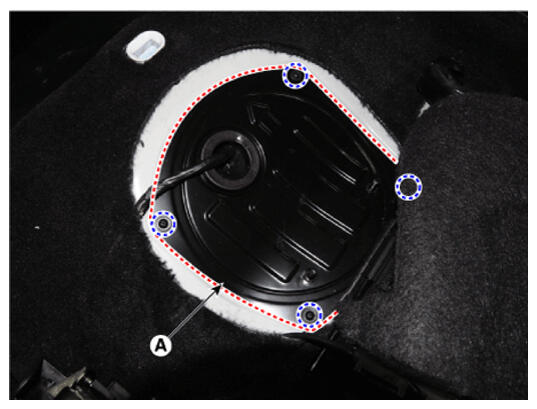

- Remove the fuel pump service cover (A) after loosening the mounting screws.

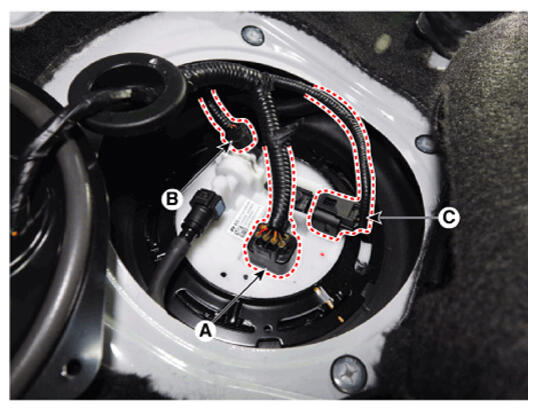

- Disconnect the fuel pump connector (A).
- Disconnect the fuel pressure sensor connector (B).
- Disconnect the fuel tank pressure sensor connector (C).

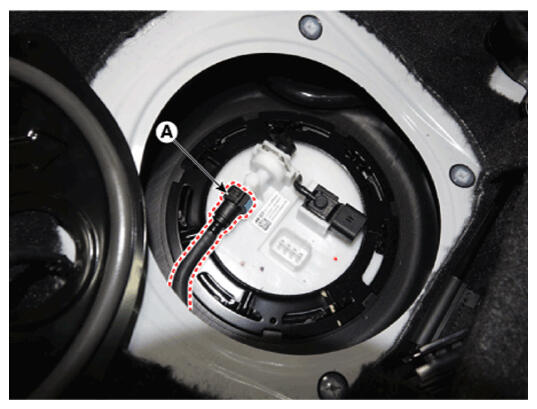

- Disconnect the fuel feed tube quick-connector (A).

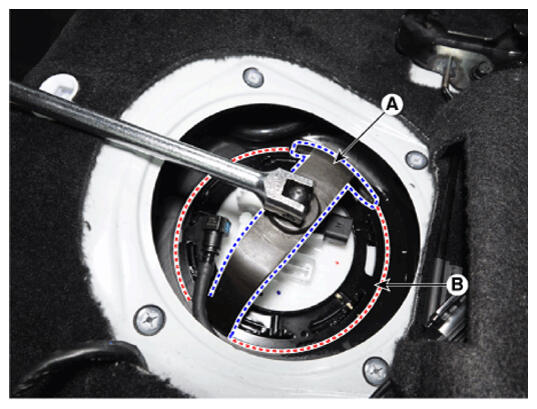

- Remove the fuel pump locking ring (B) by using the special service tool (A) [No.: 09310-B8100].NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.

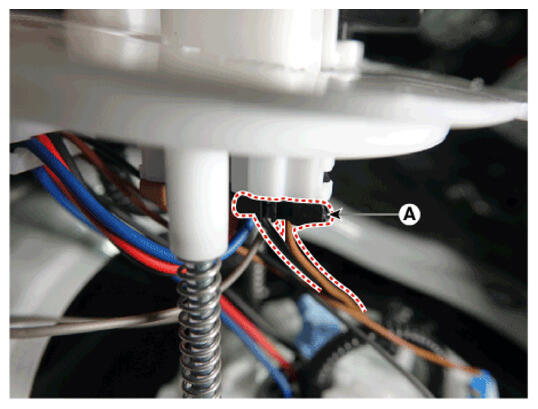

- Disconnect the sub fuel sender connector (A).

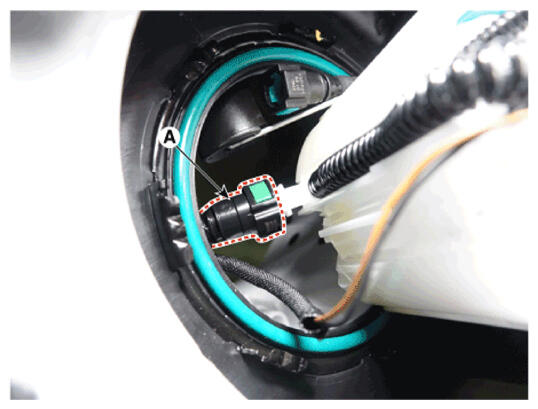

- Disconnect the suction quick-connector (A).
- Install in the reverse order of removal.
