Low Pressure Fuel Line [Low delivery pipe ↔ Fuel tank]

Release the residual pressure in fuel line.
Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

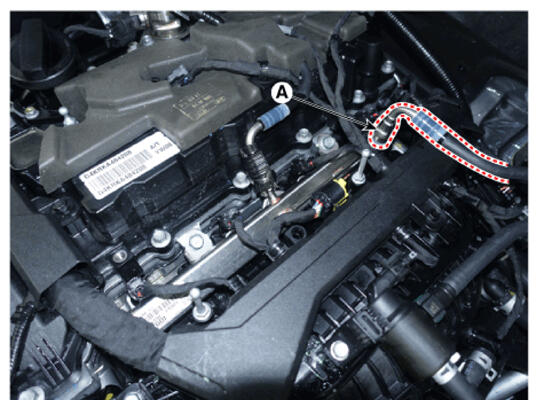

Disconnect the fuel feed quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

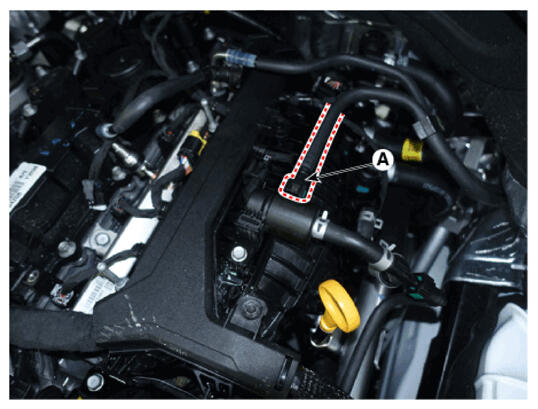

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

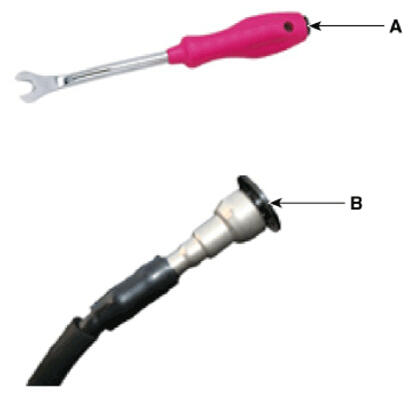

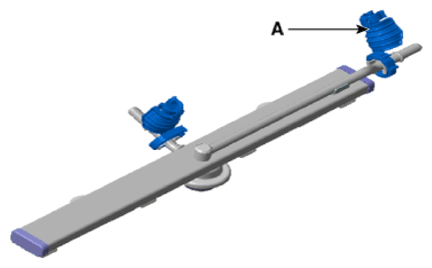

When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the vapor quick-connector (A) from the purge control solenoid valve.

Courtesy of HYUNDAI MOTOR AMERICA

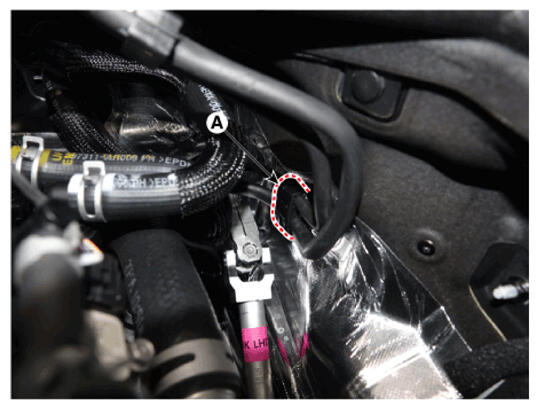

Open the vapor tube and fuel feed line fixing clip (A) to using driver.

Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the fuel tank.
Refer to Fuel Delivery System - "FUEL TANK ")

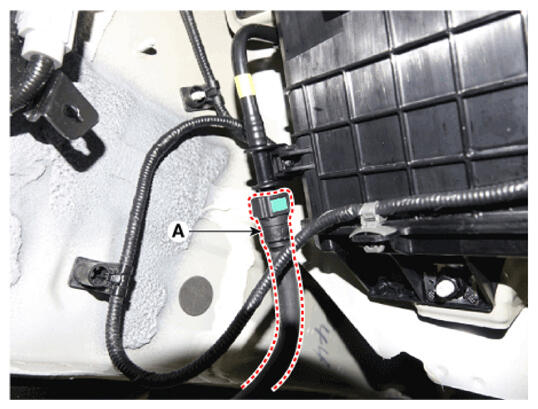

Disconnect the vapor quick-connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

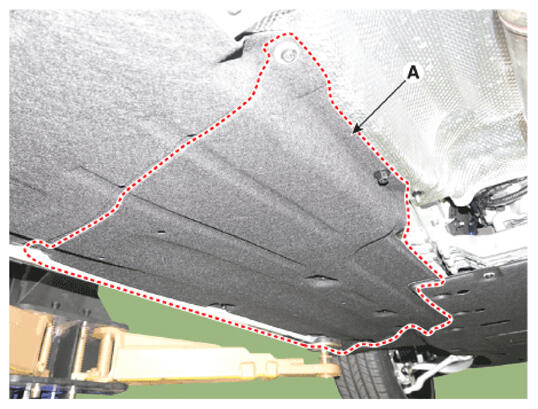

Remove the LH floor under cover (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

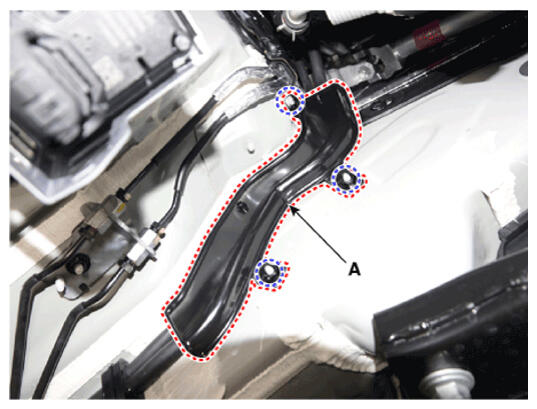

Remove the fuel line protector (A) after loosening the mounting nuts.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

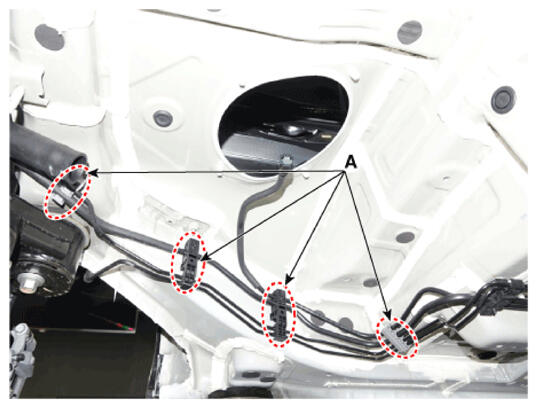

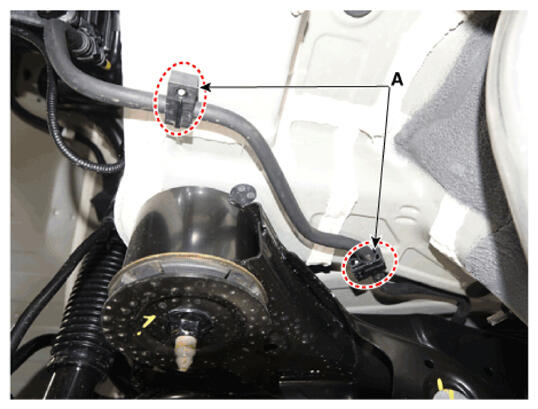

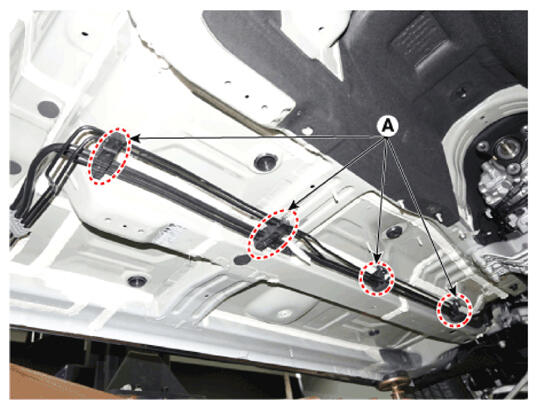

Open the vapor tube and fuel feed line fixing clip (A) to using driver.
Remove the fuel line.

Courtesy of HYUNDAI MOTOR AMERICA
